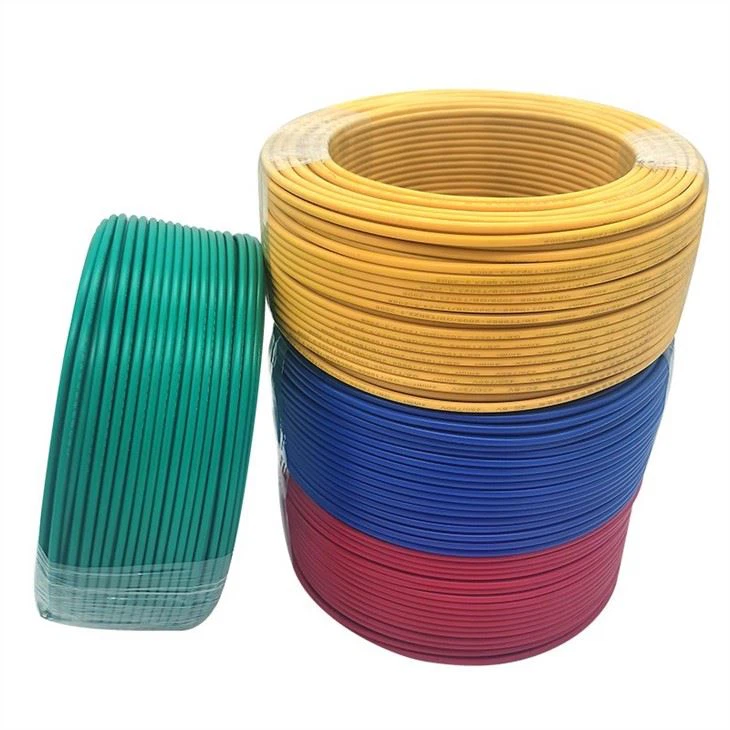

Single Core Cable 1mm
Application: Construction, Overhead, Underground, Industrial, Power Station, Computer
Insulation Material: Teflon
Material Shape: Round or Sector
Wire Core Material: Tinned Wire
Model: Teflon Wire
Colour: Red/Green/Blue/Black/White/as Request
Description
|
Model |
HZ-62A |
Brand |
OEM |
|
Product name |
Single core cable 1mm |
Type |
Insulated |
|
Application |
Fixed power supply |
Place of Origin |
Zhejiang,China |
|
Conductor Material |
Copper |
Rated Voltage |
450/750V |
| Insulation Material |
PVC |
Packing |
100M/roll |
|
Color |
Red/yellow/green/blue/double color |
Certificated |
CCC |
Application and Features
Flame retardent single core cable 1mm: an insulating material with flame retardancy, which will not spontaneously ignite without open fire.
Fire resistant 1.0 mm Single core cable: generally, it can withstand 850 ℃ high temperature, and can also be used normally under normal fire conditions.
Single core cable 1mm is an excellent and ideal cable. The conductor adopts single strand soft copper wire, whether solid or multi strand. This cable is used for general purposes as power, lighting and
The building wire of electrical control wire is suitable for conduit and fixed and protected installation. Cables can be flame retardant and fire-resistant.
Product
 |
 |
 |
 |
Technical Data
|
AWG Size
|
Conductor No./mm
|
Nom.O.D.(cm)
|
Nom.Insul.Thick.(cm)
|
Approx LBS/MFT
|
Ampacity@90℃
|
|
14
|
Solid
|
0.26
|
0.04
|
15
|
15
|
|
14
|
19/0.38
|
0.28
|
0.04
|
16
|
15
|
|
12
|
Solid
|
0.30
|
0.04
|
23
|
20
|
|
12
|
19/0.47
|
0.33
|
0.04
|
24
|
20
|
|
10
|
Solid
|
0.41
|
0.05
|
38
|
30
|
|
10
|
19/0.60
|
0.41
|
0.05
|
38
|
30
|
|
8
|
19/0.75
|
0.54
|
0.08
|
63
|
55
|
|
6
|
19/0.95
|
0.63
|
0.08
|
95
|
75
|
|
4
|
19/1.19
|
0.81
|
0.10
|
152
|
95
|
|
3
|
19/1.33
|
0.88
|
0.10
|
189
|
110
|
|
2
|
19/1.50
|
0.96
|
0.10
|
234
|
130
|
|
1
|
19/.0664
|
1.10
|
0.13
|
299
|
150
|
|
1/0
|
19/1.68
|
1.20
|
0.13
|
372
|
170
|
|
2/0
|
19/1.89
|
1.32
|
0.13
|
462
|
195
|
|
4/0
|
19/2.67
|
1.58
|
0.13
|
718
|
260
|
Our Team
After-sales team
business team
design team
Operations team
Our Business Partner
Certification
TV EN50618
TV PV1-F
CE
SGS
SAA
ISO9001
Factory overview
Cargo Transportation
FAQ
1. Where are you? May I call on you?
We are in Zhejiang, China. You are welcome to visit our factory at any time.
2. Can we print our logo or company name on your product or package?
Yes, we warmly welcome OEM and ODM orders. We have completely successful experience in OEM projects. More importantly, our R & D team will give you professional advice.
3. How does your company do in quality control?
1) We have chosen high-quality raw materials for all raw materials.
2) Professional and skilled workers care about handling every detail of production.
3) The quality control department is specially responsible for the quality inspection of each process.
4. How do I get samples?
We are honored to provide you with samples, which are provided free of charge, but need to pay express freight.
If you have an express account, you can send a courier to collect samples.
5. How long is the delivery time?
1) Sample: 1-3 days;
2) Small order: 3-10 days;
3) Batch order: 10-18 days.
6. Which payment method does your company support?
A: T/t, 100% L / C at sight, cash and Western Union remittance are acceptable. If you have other payment methods, please contact me.
7. How long is your warranty period?
One year, if any quality problem is found, we promise to return or replace the cable within one year.
