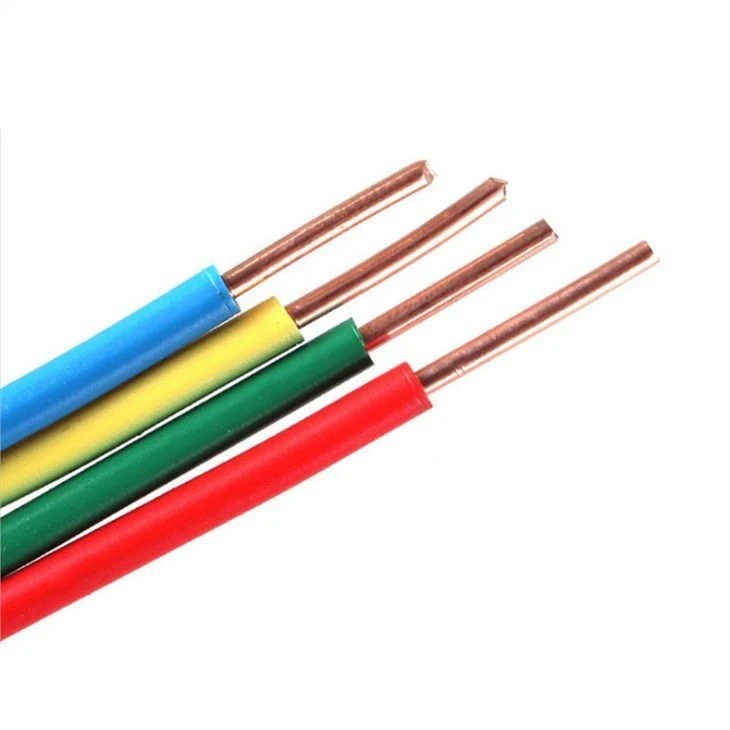

2.5 mm Single Cable
Application: Construction, Overhead, Underground, Industrial, Power Station, Computer, Car
Voltage: High Voltage Cable
Current: DC Cable
Insulation Material: PVC
Sheath Material: PVC
Material Shape: Round Wire
Description
Model | HZ-40A | Brand | OEM |
Product name | 2.5 mm single cable | Type | Insulated |
Application | lighting | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Rated Voltage | 450/750 V |
Insulation Material | PVC | Packing | 100m/coil or reel |
Color | Red, Blue, Black, Green, Yellow, white | Certificated | CE/CCC/ISO |
Application and Features
Wires and cables are used in daily life engineering buildings or home decoration. Common cables include bv 2.5 mm Single Cable and BVR multi strand cable. Although they are insulated engineering cables, there are differences between them, mainly in the following four points: the conductor structure is different, BV 2.5 mm single cable has only one conductor, and the voltage grade is different. Generally, the voltage grade of BVR is higher, the insulation thickness is different, and the BVR insulation is thicker, The purpose is also different. Bv 2.5 mm single cable is mainly used for household lighting and wiring wires, and BVR is mainly used for connecting wires of household appliances, motors, distribution cabinets, etc.
Product
 |  |
 |  |
Technical Data
AWG Size | Conductor No./mm | Nom.O.D.（cm） | Nom.Insul.Thick.（cm） | Approx LBS/MFT | Ampacity@90℃ |
14 | Solid | 0.26 | 0.04 | 15 | 15 |
14 | 19/0.38 | 0.28 | 0.04 | 16 | 15 |
12 | Solid | 0.30 | 0.04 | 23 | 20 |
12 | 19/0.47 | 0.33 | 0.04 | 24 | 20 |
10 | Solid | 0.41 | 0.05 | 38 | 30 |
10 | 19/0.60 | 0.41 | 0.05 | 38 | 30 |
8 | 19/0.75 | 0.54 | 0.08 | 63 | 55 |
6 | 19/0.95 | 0.63 | 0.08 | 95 | 75 |
4 | 19/1.19 | 0.81 | 0.10 | 152 | 95 |
3 | 19/1.33 | 0.88 | 0.10 | 189 | 110 |
2 | 19/1.50 | 0.96 | 0.10 | 234 | 130 |
1 | 19/.0664 | 1.10 | 0.13 | 299 | 150 |
1/0 | 19/1.68 | 1.20 | 0.13 | 372 | 170 |
2/0 | 19/1.89 | 1.32 | 0.13 | 462 | 195 |
4/0 | 19/2.67 | 1.58 | 0.13 | 718 | 260 |
Our Company
Packaging
FAQ
1: Are you a factory or a trading company?
Our factory was established in 2012
2: What do you mainly produce
It mainly produces wires, cables, horn cables, power lines, extension cables, network cables, coaxial cables, and automotive cables.
3: What certificate do you have?
UL/CE/VDE/JET/SNI/KC/SAA/RHOS/REACH
4: Can you provide a quotation?
Certainly. You need to tell me the quantity you need. Because the quotation is based on the size of the quantity.
5: Can you provide samples?
Yes, we can. We will charge you the sample price and all related freight. The delivery fee depends on the number of samples
6: How much is the freight?
Freight depends on port and quantity. Please tell me the port and quantity. I will give you a quotation within 12 hours.
