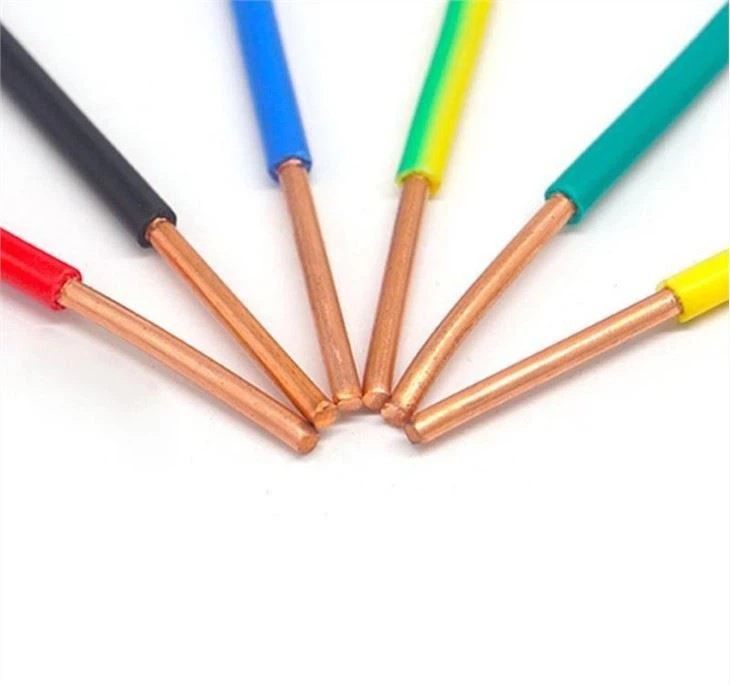

Single Strand Cable
Single strand cable is a flexible and easy-to-handle electrical cable consisting of a single conductor surrounded by insulation, commonly used for power transmission and telecommunications applications.
Description
| Gauge | Conductor Material | Outer Diameter (mm) | Rated Voltage (V) | Rated Current (A) | Maximum Temperature (°C) |
|---|---|---|---|---|---|
| 1.0mm | Copper | 2.5 | 300/500 | 10 | 90 |
| 1.5mm | Copper | 2.8 | 300/500 | 15 | 90 |
| 2.5mm | Copper | 3.2 | 300/500 | 20 | 90 |
| 4.0mm | Copper | 4.0 | 300/500 | 25 | 90 |
| 6.0mm | Copper | 4.8 | 300/500 | 35 | 90 |
| 10.0mm | Copper | 6.2 | 300/500 | 50 | 90 |
Application and Features
Application:
Single strand cable finds wide application in various industries and sectors, including:
Power transmission and distribution: It is used for electrical wiring in residential, commercial, and industrial buildings to transmit electricity from the power source to various devices and systems.
Telecommunications: Single strand cable is utilized in telecommunication networks to transmit voice, data, and video signals over long distances.
Electronics: It is commonly employed in electronic devices and equipment for interconnecting components, circuitry, and power supply.
Automotive: Single strand cable is used in the automotive industry for wiring harnesses, connecting electrical components, and powering vehicle systems.
Aerospace and aviation: It finds application in aircraft and spacecraft for electrical systems and instrumentation.
Features:
Single conductor design: The cable consists of a single conductor, which simplifies installation, reduces cable size, and provides flexibility.
Insulation: The conductor is encased in insulation, offering electrical safety, protection against short circuits, and resistance to environmental factors such as moisture, heat, and chemicals.
Efficient power transmission: Single strand cable ensures reliable and efficient transmission of electrical power, minimizing power loss during transmission.
Durability: The cable is designed to withstand mechanical stress, bending, and environmental conditions, ensuring long-term performance and reliability.
Easy installation: Its flexible nature and lightweight construction make single strand cable easy to handle, route, and install in various applications.
Compatibility: It can be used with a wide range of electrical devices, connectors, and systems, making it versatile and compatible with different equipment and setups.
Cost-effective: Single strand cable is often more cost-effective compared to multi-strand cables, making it a preferred choice in many applications.
Product
 |
 |
 |
 |
Technical Data
|
AWG Size
|
Conductor No./mm
|
Nom.O.D.(cm)
|
Nom.Insul.Thick.(cm)
|
Approx LBS/MFT
|
Ampacity@90℃
|
|
14
|
Solid
|
0.26
|
0.04
|
15
|
15
|
|
14
|
19/0.38
|
0.28
|
0.04
|
16
|
15
|
|
12
|
Solid
|
0.30
|
0.04
|
23
|
20
|
|
12
|
19/0.47
|
0.33
|
0.04
|
24
|
20
|
|
10
|
Solid
|
0.41
|
0.05
|
38
|
30
|
|
10
|
19/0.60
|
0.41
|
0.05
|
38
|
30
|
|
8
|
19/0.75
|
0.54
|
0.08
|
63
|
55
|
|
6
|
19/0.95
|
0.63
|
0.08
|
95
|
75
|
|
4
|
19/1.19
|
0.81
|
0.10
|
152
|
95
|
|
3
|
19/1.33
|
0.88
|
0.10
|
189
|
110
|
|
2
|
19/1.50
|
0.96
|
0.10
|
234
|
130
|
|
1
|
19/.0664
|
1.10
|
0.13
|
299
|
150
|
|
1/0
|
19/1.68
|
1.20
|
0.13
|
372
|
170
|
|
2/0
|
19/1.89
|
1.32
|
0.13
|
462
|
195
|
|
4/0
|
19/2.67
|
1.58
|
0.13
|
718
|
260
|
Our Team
After-sales team
business team
design team
Operations team
Our Business Partner
Certification
TV EN50618
TV PV1-F
CE
SGS
SAA
ISO9001
Factory overview
Cargo Transportation
FAQ
Q: What is single strand cable? A: Single strand cable is an electrical cable that consists of a single conductor encased in insulation, used for power transmission and various applications.
Q: What are the advantages of using single strand cable? A: Single strand cable offers simplicity in installation, flexibility, efficient power transmission, durability, and compatibility with different devices and systems. It is also often cost-effective.
Q: What are the applications of single strand cable? A: Single strand cable is used in power transmission and distribution, telecommunications, electronics, automotive wiring, and aerospace industries, among others.
Q: Is single strand cable suitable for outdoor applications? A: Single strand cable can be used outdoors, but it's important to consider the specific requirements for outdoor installations, such as using UV-resistant insulation and considering environmental factors like moisture and temperature fluctuations.
Q: Can single strand cable be used for high voltage applications? A: Single strand cable is available in various voltage ratings, but for high voltage applications, it's recommended to consult with the manufacturer or a qualified professional to ensure the cable meets the required specifications and safety standards.
Q: Can single strand cable be used for data transmission? A: Single strand cable can be used for data transmission in certain applications, but for high-speed data and networking, it is more common to use specialized cables like twisted pair or fiber optic cables.
Q: Can single strand cable be installed in conduit or raceway? A: Yes, single strand cable can be installed in conduit or raceway to provide additional protection and organization of the cables, ensuring a neat and safe installation.
Q: Is single strand cable suitable for underground installations? A: Single strand cable can be used for underground installations, but it's important to select cables specifically designed for direct burial or use conduit to protect the cable from moisture, corrosion, and other underground factors.
Q: Are there any special considerations for terminating single strand cable? A: Terminating single strand cable requires proper connectors and termination techniques specific to the cable type and application. It's recommended to follow manufacturer guidelines or consult a qualified professional for proper termination methods.
Q: Can single strand cable be used for high-temperature applications? A: The temperature rating of single strand cable varies depending on the insulation material used. It's important to choose cables with insulation that can withstand the intended high-temperature environment to ensure safe and reliable operation.
