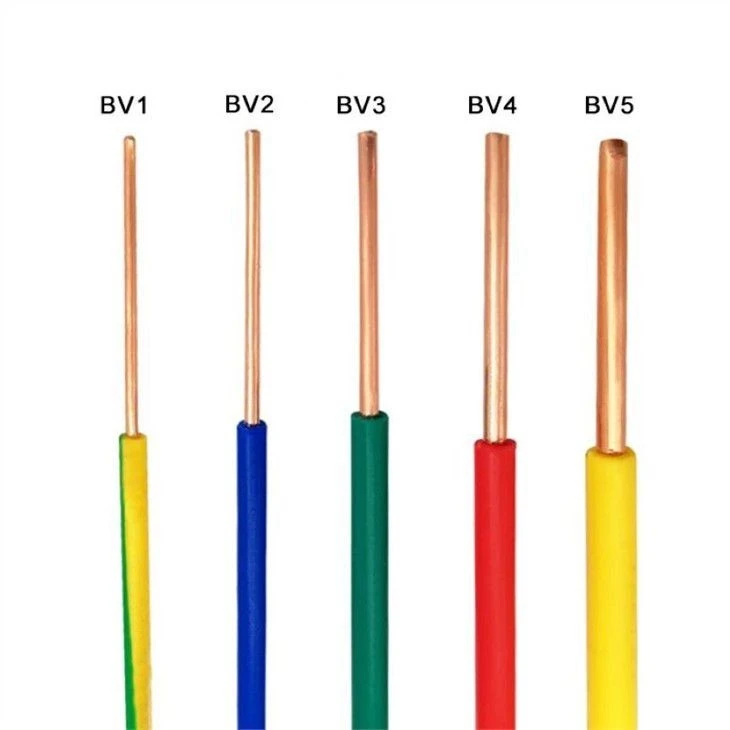

H05V-U Single Core Copper Cable
Type: Insulated
Conductor Type: Solid
Application: Overhead, Heating, Underground, Construction
Conductor Material: Copper
Insulation Material: PVC
Material Shape: Round Wire
Description
Model | HZ-39A | Brand | OEM |
Product name | H05V-U Single core copper cable | Type | Insulated |
Application | Construction | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Rated Voltage | 300/500V |
Jacket | PVC | Packing | 305m/Roll |
Color | Optional | Certificated | VDEROHS/UL |
Application and Features
Flame retardant single core copper cable refers to the wire with flame retardant function, which is widely used because of its function of blocking and delaying flame combustion. It is mainly used for building decoration lighting transmission and distribution. Its technical parameters are generally similar to ordinary wires, and its practicability is higher than ordinary wires.
Flame retardant single core copper cable application: suitable for plastic insulated control wires and electrical equipment with AC rated voltage of 450/750v and below; Flame retardant wires have a wide range of applications, especially for high-temperature, flammable and fire-resistant types, such as transmission and distribution, control, alarm and fire-fighting system products.
Product
 |  |
 |  |
Technical Data
AWG Size | Conductor No./mm | Nom.O.D.（cm） | Nom.Insul.Thick.（cm） | Approx LBS/MFT | Ampacity@90℃ |
14 | Solid | 0.26 | 0.04 | 15 | 15 |
14 | 19/0.38 | 0.28 | 0.04 | 16 | 15 |
12 | Solid | 0.30 | 0.04 | 23 | 20 |
12 | 19/0.47 | 0.33 | 0.04 | 24 | 20 |
10 | Solid | 0.41 | 0.05 | 38 | 30 |
10 | 19/0.60 | 0.41 | 0.05 | 38 | 30 |
8 | 19/0.75 | 0.54 | 0.08 | 63 | 55 |
6 | 19/0.95 | 0.63 | 0.08 | 95 | 75 |
4 | 19/1.19 | 0.81 | 0.10 | 152 | 95 |
3 | 19/1.33 | 0.88 | 0.10 | 189 | 110 |
2 | 19/1.50 | 0.96 | 0.10 | 234 | 130 |
1 | 19/.0664 | 1.10 | 0.13 | 299 | 150 |
1/0 | 19/1.68 | 1.20 | 0.13 | 372 | 170 |
2/0 | 19/1.89 | 1.32 | 0.13 | 462 | 195 |
4/0 | 19/2.67 | 1.58 | 0.13 | 718 | 260 |
Our Company
Packaging
FAQ
1. Are you a manufacturer or a trading company?
We are a professional manufacturer. We can control your order from beginning to end.
2. How can I get samples to test your quality?
Samples are provided free of charge. It is expected that new customers will pay for express delivery.
3. What is your minimum order quantity?
Usually 100m. However, the cable is heavy.
You'd better order a suitable quantity to avoid high freight.
Sea transportation is the best choice.
Can I have a discount?
It depends on your quantity. We can give you a discount and pay the freight. Please contact us.
5. Does your company accept OEM production?
Yes, you can print your company name, and we can even customize the quality card to promote your company.
