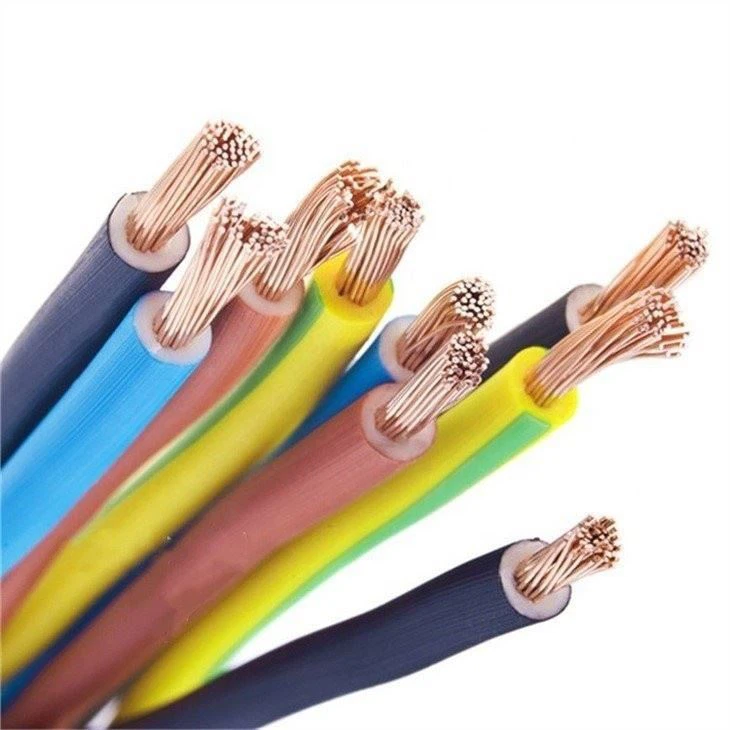

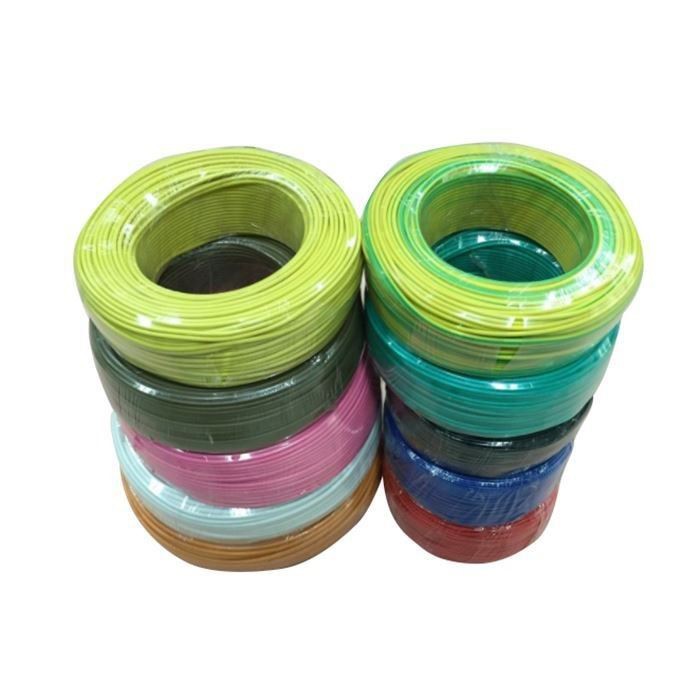

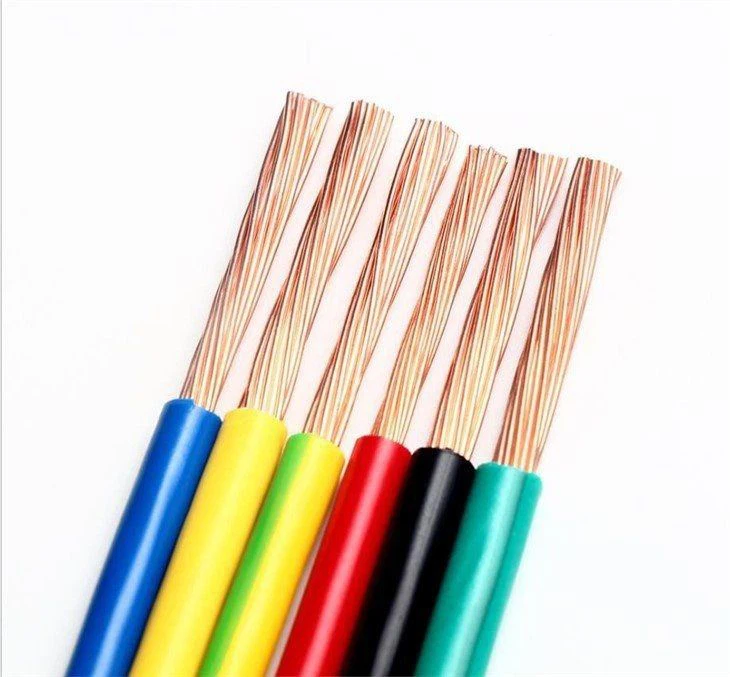

PVC Sheath Wire Single Core
Type: Insulated
Conductor Type: Stranded
Application: Internal Wiring
Conductor Material: Copper
Sheath Material: PVC
Insulation Material: PVC
Description
Model | HZ-36A | Brand | OEM |
Product name | PVC Sheath wire single core | Type | insulated |
Application | Heating | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Rated Voltage | 300/500V 450/750V |
Insulation Material | PVC Insulation Cable | Packing | 100/Roll |
Color | Requirement | Certificated | ISO9001/ISO14001 /CCC/CE |
Application and Features
Wire single core: there is only one electrical conductor in an insulating sleeve. A wide range of applications include household lighting equipment, plug power lines, household central air conditioning, etc., all of which use single core cables.
Advantages of single core cable: due to its small cross-section occupancy, it is not easy to be oxidized, and its short-circuit capacity is destructive, so its service life is relatively long.
Wire single core includes bv cable, RV cable and BVV cable. BVR cable is a multi-core cable with soft raw materials, and several tiny copper core cables are twisted together.
Product
 |  |
 |  |
Technical Data
AWG Size | Conductor No./mm | Nom.O.D.（cm） | Nom.Insul.Thick.（cm） | Approx LBS/MFT | Ampacity@90℃ |
14 | Solid | 0.26 | 0.04 | 15 | 15 |
14 | 19/0.38 | 0.28 | 0.04 | 16 | 15 |
12 | Solid | 0.30 | 0.04 | 23 | 20 |
12 | 19/0.47 | 0.33 | 0.04 | 24 | 20 |
10 | Solid | 0.41 | 0.05 | 38 | 30 |
10 | 19/0.60 | 0.41 | 0.05 | 38 | 30 |
8 | 19/0.75 | 0.54 | 0.08 | 63 | 55 |
6 | 19/0.95 | 0.63 | 0.08 | 95 | 75 |
4 | 19/1.19 | 0.81 | 0.10 | 152 | 95 |
3 | 19/1.33 | 0.88 | 0.10 | 189 | 110 |
2 | 19/1.50 | 0.96 | 0.10 | 234 | 130 |
1 | 19/.0664 | 1.10 | 0.13 | 299 | 150 |
1/0 | 19/1.68 | 1.20 | 0.13 | 372 | 170 |
2/0 | 19/1.89 | 1.32 | 0.13 | 462 | 195 |
4/0 | 19/2.67 | 1.58 | 0.13 | 718 | 260 |
