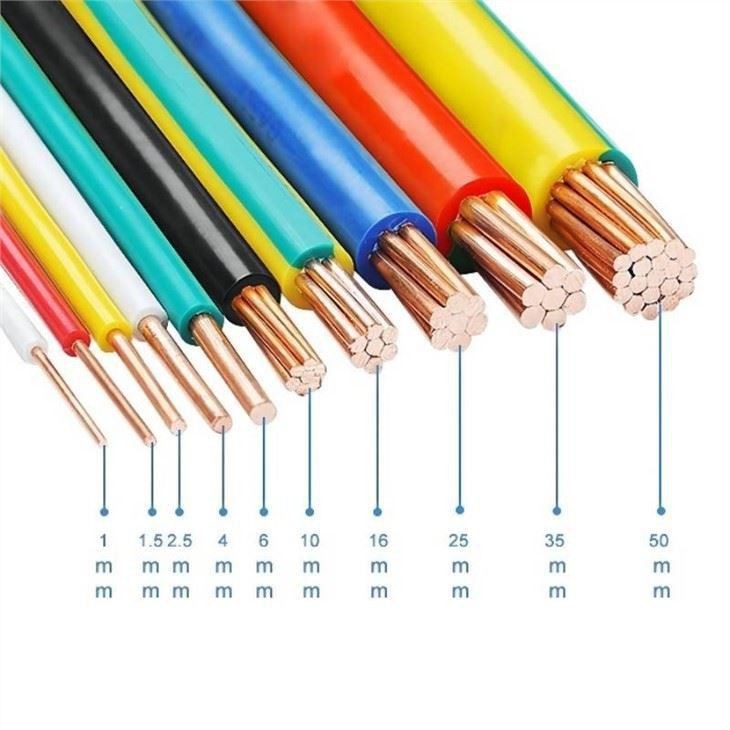

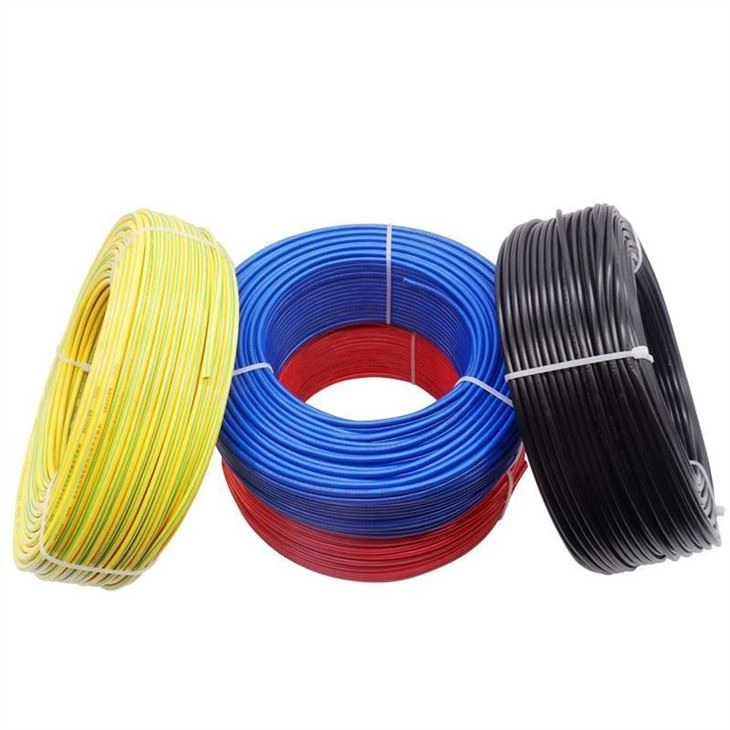

BV 1.5mm Copper Single Solid Wire
Type: Insulated
Conductor Type: Tinned or Bare, Stranded or Solid Copper
Application: Internal Wiring of Appliances
Conductor Material: Copper
Insulation Material: XLPE
Material Shape: Round Wire
Description
Model | HZ-25A | Brand | OEM |
Product name | BV 1.5mm Copper Single Solid Wire | Type | Solid/Flexible |
Application | Construction, heating housing and building | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Rated Voltage | 300/500V 450/750V |
Insulation Material | PVC | Packaging | carton box |
Color | Black, Blue, Grey, Red, Yellow, Brown, White,Green/Yellow | Certificated | CE/ROHS/CCC/VDE/CCC/ISO9001 |
Application and Features
1.5mm single solid wire: there is only one electrical conductor in an insulating tube. The general scope of application is that single core cable is used for lighting fixtures, power cord plugs, household central air conditioners, etc. The characteristics of single core cable should be clear. The characteristics of single core cable are summarized as follows:
Classification of single core cables
Single core cables include bvsingle solid wire, RV flexible cable, BVV multi strand single core cable, and BVR multi-core cable. The raw materials are relatively soft, and there are many fine copper core cables twisted together.
Single core wire color:
A wide range of single core wire colors are: red, yellow, blue, green, black, white, multicolor (yellow, green), brown.
Advantages of single core cable:
Due to the small proportion of cross-section, it is not easy to be oxidized, and the destructive short-circuit capacity, the service life of relative application is long.
Product
![]() | ![]() |
![]() | ![]() |
Technical Data
AWG Size | Conductor No./mm | Nom.O.D.(cm) | Nom.Insul.Thick.(cm) | Approx LBS/MFT | Ampacity@90℃ |
14 | Solid | 0.26 | 0.04 | 15 | 15 |
14 | 19/0.38 | 0.28 | 0.04 | 16 | 15 |
12 | Solid | 0.30 | 0.04 | 23 | 20 |
12 | 19/0.47 | 0.33 | 0.04 | 24 | 20 |
10 | Solid | 0.41 | 0.05 | 38 | 30 |
10 | 19/0.60 | 0.41 | 0.05 | 38 | 30 |
8 | 19/0.75 | 0.54 | 0.08 | 63 | 55 |
6 | 19/0.95 | 0.63 | 0.08 | 95 | 75 |
4 | 19/1.19 | 0.81 | 0.10 | 152 | 95 |
3 | 19/1.33 | 0.88 | 0.10 | 189 | 110 |
2 | 19/1.50 | 0.96 | 0.10 | 234 | 130 |
1 | 19/.0664 | 1.10 | 0.13 | 299 | 150 |
1/0 | 19/1.68 | 1.20 | 0.13 | 372 | 170 |
2/0 | 19/1.89 | 1.32 | 0.13 | 462 | 195 |
4/0 | 19/2.67 | 1.58 | 0.13 | 718 | 260 |
Our Company

Packaging

FAQ
1. When can I get the price?
We usually quote within 6 hours after receiving your inquiry. If you are in urgent need of price, please call us or tell us in email so that we will give priority to your inquiry.
2. How can I get samples to check your quality?
After confirming the price, you can ask for samples to check our quality. The samples are free, but the freight should be paid.
3. How long do I expect to get the samples?
After you pay the freight and send us the confirmation documents, the samples will be ready for delivery within 37 days. The samples will be sent to you by express delivery and delivered within 3-5 days. You can use your own express account. If you don't have an account, you can also repay to us.
4. What is the lead time for mass production?
To be honest, it depends on the number of orders and the season you place them. Our best record is the delivery of 10 kilometers of cables in a week. Generally speaking, we suggest that you start your inquiry two months before the date you want to obtain the products in your country.
Hot Tags: bv 1.5mm copper single solid wire, China, suppliers, manufacturers, factory, wholesale, cheap, 12 Gauge Single Strand Wire, 10 gauge single wire, 14 gauge house wire, 4 gauge house wire, single core copper cable, single strand insulated copper wire
