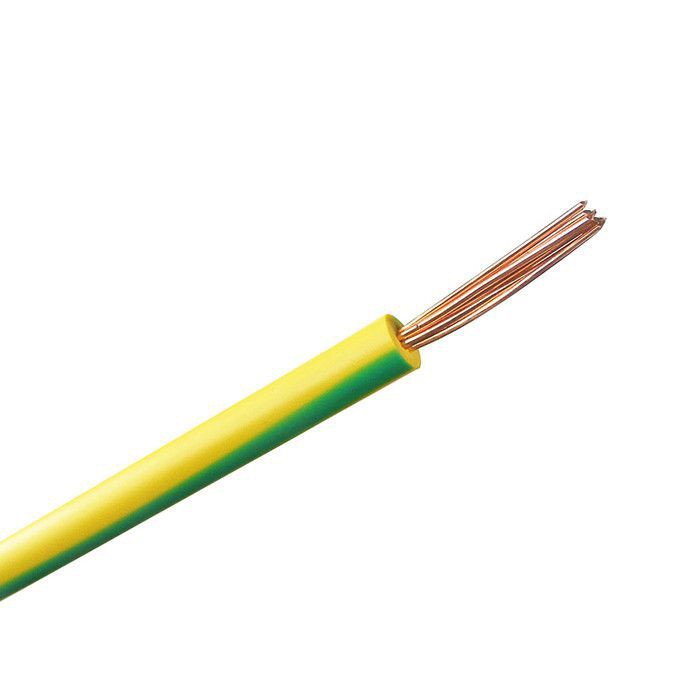

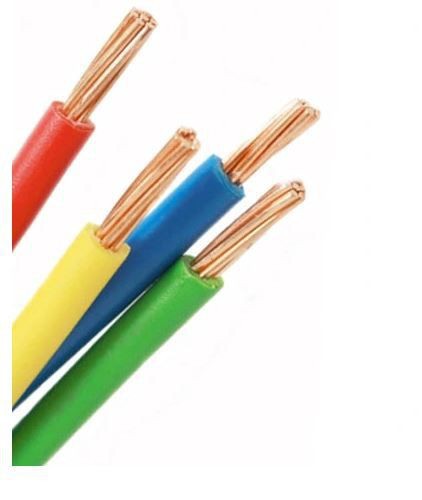

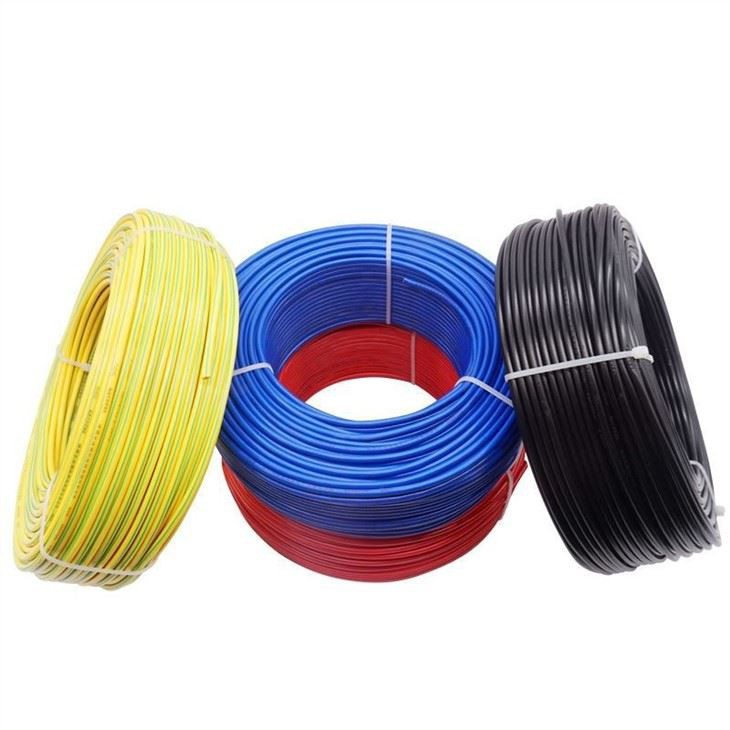

1.5 Sqmm Single Copper Wire

Type: Insulated
Conductor Type: Stranded
Application: House Wiring
Conductor Material: Copper
Sheath Material: PVC
Insulation Material: PVC

Send Inquiry

Description

Model	HZ-29A	Brand	OEM
Product name	1.5 sqmm Single copper wire	Type	LOW VOLTAGE
Application	Construction, heating housing and building	Place of Origin	Zhejiang,China
Conductor Material	Copper	Rated Voltage	450V/750V
Insulation Material	PVC	Packaging	Carton
Color	Black, Red, Yellow, Blue or customized	Certificated	CE、UL、VDE

Application and Features

The production processes of BV single copper wire and BVR single copper wire are different, and the price difference is more than twice. Generally speaking, most home decoration uses hard wire, which is relatively cost-effective, but if economic conditions permit, soft wire can also be used. Of course, we should also make a good choice according to the actual situation.

Bv single copper wire has only one core in the middle, which is made of hard material, also known as hard wire. Generally speaking, the service life of hard wires is almost the same as that of houses, which is not easy to oxidize and is more suitable for hidden circuits. However, this kind of wire is difficult to recover after bending, and it is easy to wear after bending, resulting in line failure.

Product

Technical Data

AWG Size	Conductor No./mm	Nom.O.D.（cm）	Nom.Insul.Thick.（cm）	Approx LBS/MFT	Ampacity@90℃
14	Solid	0.26	0.04	15	15
14	19/0.38	0.28	0.04	16	15
12	Solid	0.30	0.04	23	20
12	19/0.47	0.33	0.04	24	20
10	Solid	0.41	0.05	38	30
10	19/0.60	0.41	0.05	38	30
8	19/0.75	0.54	0.08	63	55
6	19/0.95	0.63	0.08	95	75
4	19/1.19	0.81	0.10	152	95
3	19/1.33	0.88	0.10	189	110
2	19/1.50	0.96	0.10	234	130
1	19/.0664	1.10	0.13	299	150
1/0	19/1.68	1.20	0.13	372	170
2/0	19/1.89	1.32	0.13	462	195
4/0	19/2.67	1.58	0.13	718	260

Our Company

Packaging

FAQ

1. When can I get the price?

We usually quote within 6 hours after receiving your inquiry. If you are in urgent need of price, please call us or tell us in email so that we will give priority to your inquiry.

2. How can I get samples to check your quality?

After confirming the price, you can ask for samples to check our quality. The samples are free, but the freight should be paid.

3. How long do I expect to get the samples?

After you pay the freight and send us the confirmation documents, the samples will be ready for delivery within 37 days. The samples will be sent to you by express delivery and delivered within 3-5 days. You can use your own express account. If you don't have an account, you can also repay to us.

4. What is the lead time for mass production?

To be honest, it depends on the number of orders and the season you place them. Our best record is the delivery of 10 kilometers of cables in a week. Generally speaking, we suggest that you start your inquiry two months before the date you want to obtain the products in your country.
