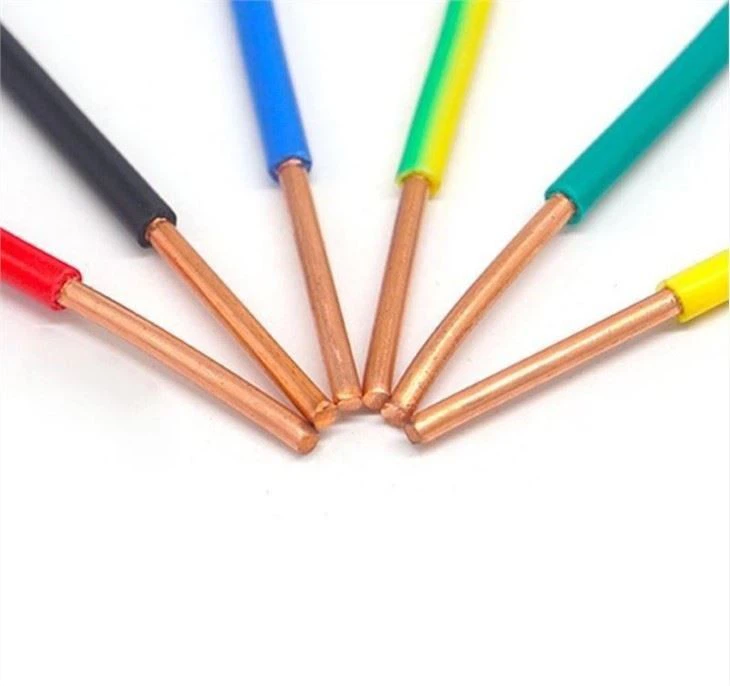

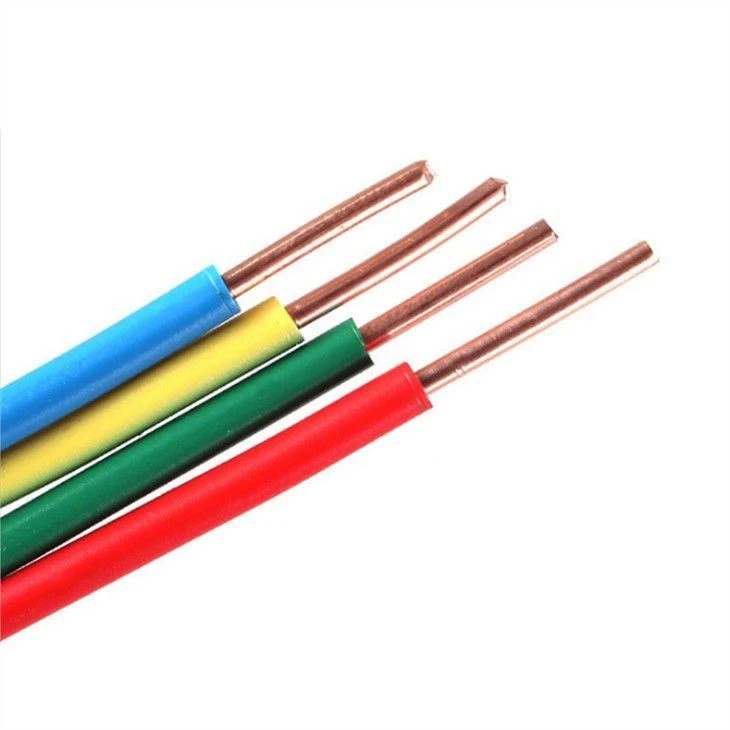

1.5 Sqmm 1 Core Cable

Type: Insulated
Conductor Type: Stranded
Application: Power and Lighting
Conductor Material: Copper
Sheath Material: PVC
Insulation Material: PVC

Send Inquiry

Description

Model	HZ-013B	Brand	OEM
Product name	1.5 sqmm 1 core cable	Type	Insulated
Application	Power	Place of Origin	Zhejiang,China
Conductor Material	Copper	Rated Voltage	300/500V 450/750V
Insulation Material	PE	Package	Carton
Color	Requirement	Certificated	CCC SGS

Application and Features

When we decorate circuits at home, we usually choose wires. At this time, a very important parameter of the wire is the cross-sectional area of the wire. That is, the current carrying capacity of the corresponding wire is related to the cross-sectional area of the wire. So what is the carrying capacity of different wires? For example, what is the carrying capacity of 1.5 sqmm 1 core cable?

The 1.5 sqmm 1 core cable conductor is a copper core cable, and its insulating layer is PVC. That is, PVC insulation. The number of cores is generally three to five. In this case, the ampacity of 1.5 sqmm copper core cable is divided into two cases. The better case is our common PVC insulated wire, whose current carrying capacity is generally 55 a. But if it is a rubber insulated wire or wire, its current carrying capacity is about 58 A, which is slightly larger.

Product

Technical Data

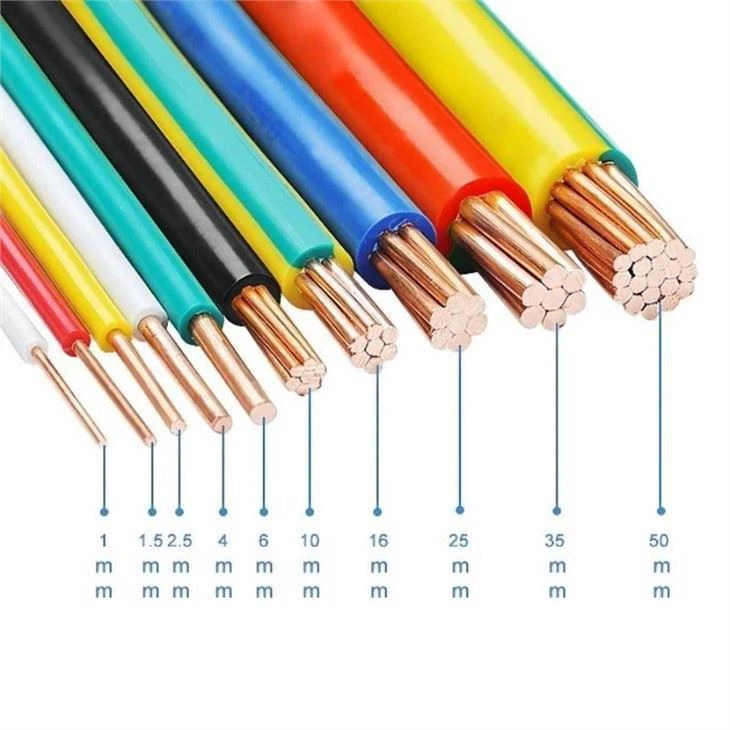

Voltage level (V)	Nominal section (mm²)	Number of conductors	Toplimit of overalldiameter(mm)	Maximum DC resistance (20℃) (Ω/km)	Minium insulation resistance (20℃) (MΩ·km)	Recommended value of carring capacity (A)	Reference weight (kg/km)
300/500	0.5	1	2.3	36	0.015	13	8.3
	0.75	7	2.6	24.5	0.012	17	10.9
	0.75	1	2.7	24.5	0.014	17	11.8
	1	7	2.8	18.1	0.011	20	13.7
	1	1	3	18.1	0.013	20	14.8
450/750	1.5	1	3.2	12.1	0.011	25	20.0
	1.5	7	3.3	12.1	0.01	25	21.3
	2.5	1	3.9	7.41	0.01	34	31.5
	2.5	7	4	7.41	0.009	34	34.4
	4	1	4.4	4.61	0.0085	44	46.8
	4	7	4.6	4.61	0.0077	44	48.1
	6	1	5	3.08	0.007	58	65.1
	6	7	5.2	3.08	0.0065	58	68.8
	10	7	6.7	1.83	0.0065	79	111
	16	7	7.8	1.15	0.005	111	166
	25	7	9.7	0.727	0.005	146	263
	35	7	10.9	0.524	0.004	180	356
	50	19	12.8	0.387	0.0045	228	487
	70	19	14.6	0.268	0.0035	281	679
	95	19	17.1	0.193	0.0035	344	932
	120	37	18.8	0.153	0.0032	397	1163
	150	37	20.9	0.124	0.0032	456	1424
	185	37	23.3	0.0991	0.0032	519	1789
	240	61	26.6	0.0754	0.0032	592	2335
	300	61	29.6	0.0601	0.003	685	2924
	400	61	33.2	0.047	0.0028	799	3750

Our Company

Packaging

FAQ

1: What is your minimum order quantity?

I'm not sure. You can confirm with us. Usually 1000 meters.

2: When is your delivery time?

It depends on whether we have your model in stock. Under normal circumstances, it takes about 7-15 days to realize production.

3: How can I get samples from your company? Are the samples free?

If you need samples to check the quality, please contact us, and we will send you samples free of charge, but the freight should be paid.

4: How to ensure quality?

For any quality problem, we will arrange technicians to solve or return it as soon as possible, and bear the corresponding customer losses.

5: What if the cable we need is different from yours in specification?

Any difference, we can design and produce according to your requirements, including cable, color, material, processing requirements, etc.
