Non Metallic Sheathed Cable

This cable is suitable for audio equipment and household small electric toll collectors and instruments.

Send Inquiry

Description

Model	HZ-14C	Brand	OEM
Product name	Non metallic sheathed cable	Type	Insulated
Application	House Wire, Residential Wiring	Place of Origin	Zhejiang,China(Mainland)
Conductor Material	Copper	Rated Voltage	300V
Insulation Material	PVC	Transport Package	Carton
Jacket	PVC	certificated	CE ,VDE，UL Certification

Application and Features

Non metallic sheltered cable can be used not only for exposed work in dry places, but also for concealed work in dry or wet places.

The maximum allowable conductor temperature is 90 ° C. The recommended minimum installation temperature is - 25 ° C for two core cables,

- 10 ° C for three core cables (use appropriate handling procedures). Before installation, the materials shall be properly stored above 0 ° C for 24 hours. The maximum rated voltage for all intended applications is 300 volts.

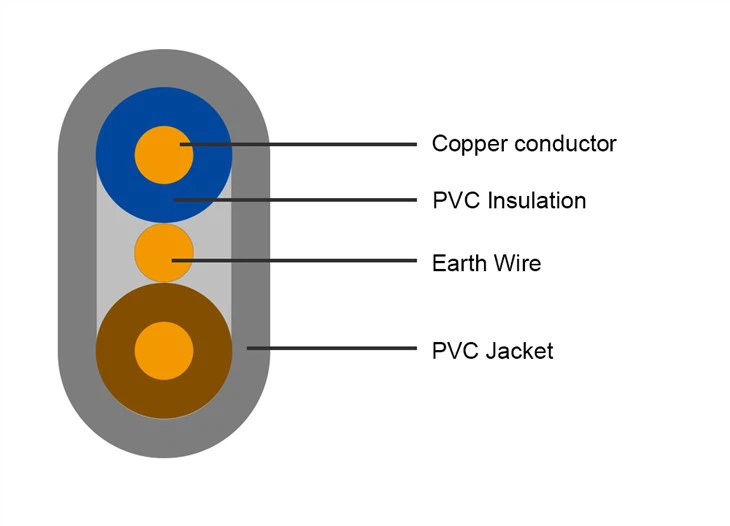

Non metallic sheathed cable can be used as a two or three core cable with bare grounding conductor. It uses annealing

Made of (soft) copper conductor - compression support for stranded conductor; Heat resistant thermoplastic polyvinyl chloride (PVC) for single conductor

Insulation and nylon sheath, and PVC sheath for overall structure.

The conductors are white, black and red (for 3-core cables). The cable sheath shall be color coded according to the size.

Product

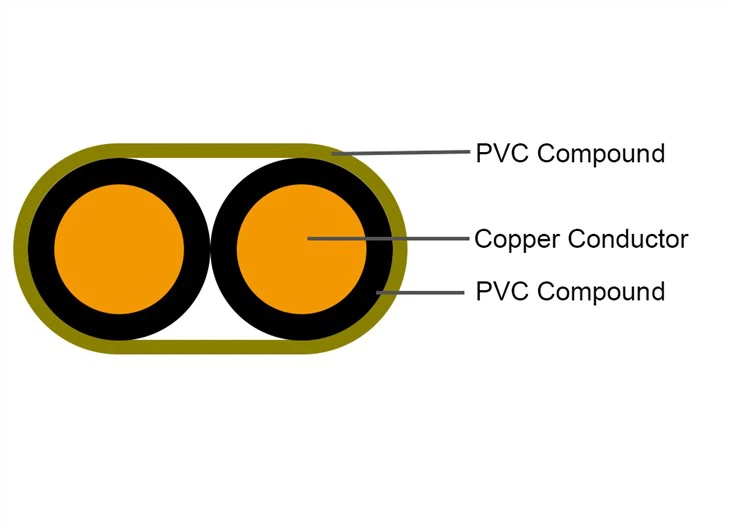

Two-Wires-Non-metallic-sheathed-Cable-768x722

Technical Data

Conductor			Insulation		Ground		Approx. Jacket thickness		Approx. Cable Dia.		Approx. Cable weight		Allowabl e Ampaciti es 30°C
Size (AWG)	Cores	Strands	Inches	mm	Size (AWG)	Core	Inches	mm	Inches	mm	Ib/ 1000ft	Kg/ km
14	2	1	0.034	0.86	14	1	0.030	0.76	0.388*0.192	9.86*4.88	68	101	25*
14	2	1	0.034	0.86	14	1	0.030	0.76	0.388 x 0.192	9.86 x 4.88	68	101	25*
12	2	1	0.034	0.86	14	1	0.030	0.76	0.422 x 0.209	10.71 x 5.30	86	129	30*
10	2	1	0.034	0.86	12	1	0.030	0.76	0.481 x 0.230	12.21 x 5.84	122	182	40*
8	2	7	0.040	1.02	10	1	0.045	1.14	0.636 x 0.312	16.15 x 7.92	208	310	55
6	2	7	0.051	1.30	8	7	0.045	1.14	0.792 x 0.370	20.12 x 9.40	315	468	75
14	3	1	0.034	0.86	14	1	0.030	0.76	0.345	8.77	86	128	25*
12	3	1	0.034	0.86	14	1	0.030	0.76	0.381	9.69	114	169	30*
10	3	1	0.034	0.86	12	1	0.030	0.76	0.427	10.85	163	242	40*
8	3	7	0.040	1.02	10	1	0.045	1.14	0.570	14.47	275	408	55
6	3	7	0.051	1.30	8	7	0.045	1.14	0.695	17.65	421	627	75
3	3	7	0.051	1.30	6	7	0.080	2.03	0.925	23.48	799	1189	115

Our Company

Packaging

7486(1)

FAQ

1. When can I get the price?

We usually quote within 6 hours after receiving your inquiry.

2. How can I get samples to check your quality?

After the price is confirmed, you can ask samples to check our quality. Samples are free of charge, but freight is required.

3. How soon can I receive the samples?

After you pay the freight and send us the confirmation documents, the samples will be ready for delivery within 3-7 days. The samples will be sent to you by express and arrive within 3 ~ 5 days. If you don't have an account, you can use your own express account or advance payment to us.

4. What is the delivery date of mass production?

It depends on the number of orders and the season you place your order. The best record we keep is the delivery of 10km of cables in a week. Generally speaking, we recommend that you start your inquiry two months before the date of obtaining products in your country / region.

5.What terms of payment do you accept?

T / T or T / C, details can be discussed!
