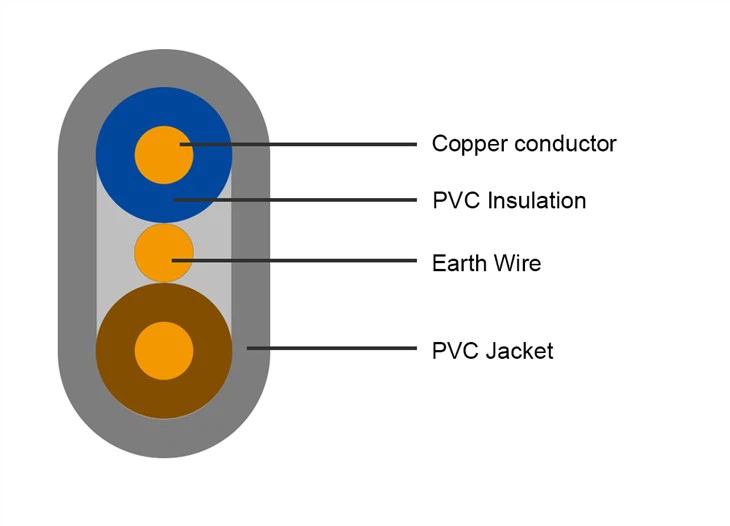

Twin And Earth Flat TPS Cable
We use reliable materials to manufacture RG6 CCS coaxial cable.Manufacturing high-quality cables begins with the use of high-quality materials and components.
Description
Model | HZ-016G | Brand | OEM |
Product name | Twin and Earth Flat TPS Cable | Type | Twin and earth cable |
Application | electrical appliances, switches | Place of Origin | Zhejiang,China(Mainland) |
Conductor Material: | Copper | Voltage Rating | 250V |
Color | Black | Transport Package | Carton |
Jacket | PVC | certificated | ISO9001, CE, CCC, RoHS |
Application and Features
Twin and earth flat TPS cable is generally applicable to household appliances, switches and lighting distribution; It can also be used in power plants, household appliances, instruments, communication equipment and other cables and wires with rated voltage of 450 / 750V and below 450 / 750V AC.
Both twin and earth flat TPS cables are certified. In addition, we have strict quality control, and all products have been 100% tested before delivery. The quality is guaranteed.
Product
Technical Data
Cross section [mm2] | Type of conductor | Number and diameter of | Nom. insulation | Nom. outer sheath thick. [mm] | Earth cond. | Nom. over, diam. | Approx, weight [kg/100m] | Nexans ref. |
1 | Solid copper | 1/1.13 | 0.6 | 0.9 | 1 | 8.9 x 4.2 | 7.74 | 2*1mm² +1 E |
1 | Solid copper | 1/1.13 | 0.6 | 0.9 | 1 | 8.9 x 4.2 | 7.74 | 2*1mm² +1 E |
1 | Solid copper | 1/1.13 | 0.6 | 0.9 | 1 | 8.9 x 4.2 | 7.74 | 2*1.5mm² +1.5 E |
1.5 | Stranded copper | 7/0.52 | 0.6 | 0.9 | 1.5 | 9.9 x 4.5 | 8.86 | 2*1.5mm² +1.5 E |
1.5 | Stranded copper | 7/0.52 | 0.6 | 0.9 | 1.5 | 9.9 x 4.5 | 13.29 | 2*1.5mm² +1.5 E |
1.5 | Stranded copper | 7/0.52 | 0.6 | 0.9 | 1.5 | 9.9 x 4.5 | 8.86 | 2*1.5mm² +1.5 E |
1.5 | Stranded copper | 7/0.52 | 0.6 | 0.9 | 1.5 | 9.9 x 4.5 | 8.86 | 2*1.5mm² +1.5 E |
1.5 | Stranded copper | 7/0.52 | 0.6 | 0.9 | 1.5 | 9.9 x 4.5 | 8.86 | 2*1.5mm² +1.5 E |
2.5 | Solid copper | 1/1.77 | 0.7 | 1.0 | 2.5 | 11.8x5.4 | 13.68 | 2*2.5mm² +2.5 E |
2.5 | Stranded copper | 7/0.67 | 0.7 | 1.0 | 2.5 | 12.2x5.4 | 14.03 | 2*2.5mm² +2.5 E |
2.5 | Stranded copper | 7/0.67 | 0.7 | 1.0 | 2.5 | 12.2x5.4 | 14.03 | 2*2.5mm² +2.5 E |
2.5 | Stranded copper | 7/0.67 | 0.7 | 1.0 | 2.5 | 12.2x5.4 | 14.03 | 2*2.5mm² +2.5 E |
2.5 | Stranded copper | 7/0.67 | 0.7 | 1.0 | 2.5 | 12.2x5.4 | 14.03 | 2*2.5mm² +2.5 E |
2.5 | Stranded copper | 7/0.67 | 0.7 | 1.0 | 2.5 | 12.2x5.4 | 14.03 | 2*2.5mm² +2.5 E |
2.5 | Stranded copper | 7/0.67 | 0.7 | 1.0 | 2.5 | 12.2x5.4 | 14.03 | 2*2.5mm² +2.5 E |
2.5 | Stranded copper | 7/0.67 | 0.7 | 1.0 | 2.5 | 12.2x5.4 | 14.03 | 2*2.5mm² +2.5 E |
2.5 | Stranded copper | 7/0.67 | 0.7 | 1.0 | 2.5 | 12.2x5.4 | 14.03 | 2*2.5mm² +2.5 E |
4 | Stranded copper | 7/0.85 | 0.8 | 1.1 | 2.5 | 13.9x6.3 | 18.65 | 2*4mm² +2.5 E |
4 | Stranded copper | 7/0.85 | 0.8 | 1.1 | 2.5 | 13.9x6.3 | 18.65 | 2*4mm² +2.5 E |
4 | Stranded copper | 7/0.85 | 0.8 | 1.1 | 2.5 | 13.9x6.3 | 18.65 | 2*4mm² +2.5 E |
4 | Stranded copper | 7/0.85 | 0.8 | 1.1 | 2.5 | 13.9x6.3 | 18.65 | 2*4mm² +2.5 E |
4 | Stranded copper | 7/0.85 | 0.8 | 1.1 | 2.5 | 13.9x6.3 | 18.65 | 2*4mm² +2.5 E |
4 | Stranded copper | 7/0.85 | 0.8 | 1.1 | 2.5 | 13.9x6.3 | 18.65 | 2*4mm² +2.5 E |
6 | Stranded copper | 7/1.03 | 0.8 | 1.1 | 2.5 | 15.0x6.9 | 23.04 | 2*6mm² +2.5 E |
6 | Stranded copper | 7/1.03 | 0.8 | 1.1 | 2.5 | 15.0x6.9 | 23.04 | 2*6mm² +2.5 E |
6 | Stranded copper | 7/1.03 | 0.8 | 1.1 | 2.5 | 15.0x6.9 | 23.04 | 2*6mm² +2.5 E |
6 | Stranded copper | 7/1.03 | 0.8 | 1.1 | 2.5 | 15.0x6.9 | 23.04 | 2*6mm² +2.5 E |
Our Company

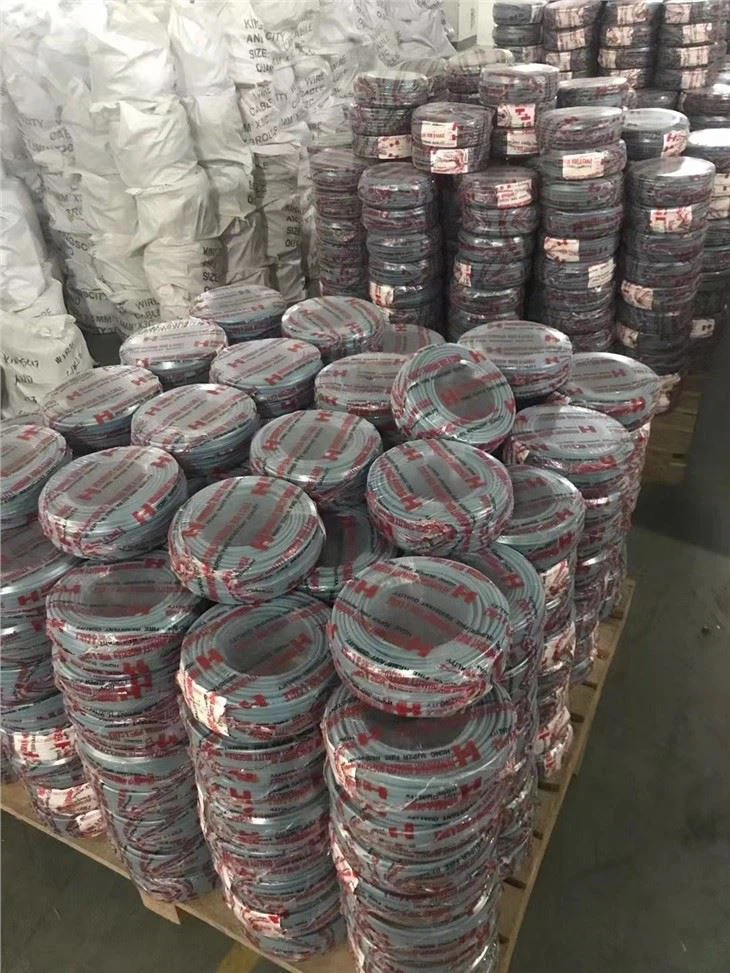

Packaging
FQA
1. Are you a manufacturer or a trading company? We are a professional manufacturer. We can control your order from beginning to end.
Welcome to visit us.
2. How can I get samples to test your quality?
Samples are free for you. New customers need to pay for express delivery.
3. What is your minimum order quantity?
Generally 100m. However, the cable is heavy.
You'd better order an appropriate quantity to avoid high freight.
Shipping is the best choice.
4. Is there a discount?
It depends on your quantity. We can discount and bear the freight. Please contact us.
5. Does your company accept OEM production?
Yes, you can print your company name, and we can even customize the quality card to promote your company.
