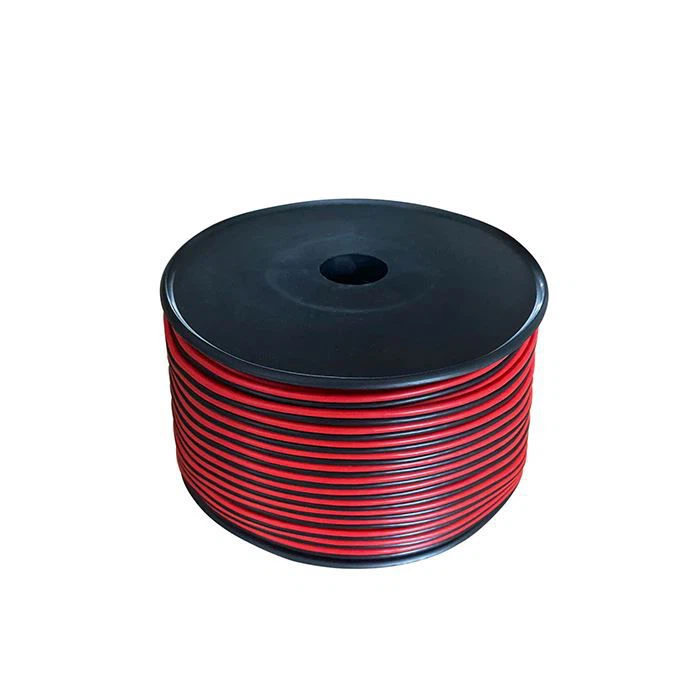

24 Gauge Speaker Wire Red Black

24 gauge speaker wire red black is a high-quality speaker cable, each conductor is equipped with a highly flexible sheath made of PVC.

Send Inquiry

Application and Features

24 gauge speaker wire red black is a high-quality speaker cable, each conductor is equipped with a highly flexible sheath made of PVC. It is suitable for power amplifiers providing up to 300W power.

This speaker cable can be used to connect input and output devices (especially speakers) and establish an electrical connection between speakers and audio amplifiers. For hi fi speaker and PA system, home and car hi fi connection, fixed installation.

Our 24 gauge speaker wire red black there are many modes of transportation available, such as express, air or sea. Shipment can be made using the designated transportation company or our own agent. Track the goods for you before they arrive.

Description

Product Name: 24 gauge speaker wire red black

Birthplace: Zhejiang, China

application ： Speaker, microphone, home theater

conductor ： Bare copper, CCA, CCA / Cu

Certificate: ISO9001 / CCC

Color: Black / transparent (customizable)

Conductor: PVC

Conductor size 10/12/14/16/18/20/22/24/26/28 AWG

Length: 50M / 100M / 150m / roll

Packaging details: paper / wood roll packaging or plastic shrink packaging

Payment method: T / T L / C

Application

Product

Technical Data

Wire size	2Ω load	4Ω load	6Ω load	8Ω load
22 AWG(0.326mm2)	3ft (0.9m)	6 ft (1.8m)	9ft (2.7m)	12ft (3.6m)
20 AWG(0.518mm2)	5ft (1.5m)	10ft (3.0m)	15ft (4.5m)	20ft (6.0m)
18 AWG(0.823mm2)	8ft (2.4m)	16ft (4.9m)	24ft (7.3m)	32ft (9.7m)
16 AWG(1.310mm2)	12ft (3.6m)	24ft (7.3m)	36ft (11.0m)	48ft (15m)
14 AWG(2.080mm2)	20ft (6.1m)	40ft (12.0m)	60ft (18.0m)	80ft (24.0m)
12 AWG(3.310mm2)	30ft (9.1m)	60ft (18.0m)	90ft (27.0m)	120ft (36.0m)
10 AWG(5.260mm2)	50ft (15.0m)	100ft (30m)	150ft (46m)	200ft (61m)

Capacitance	100 Hz	200Hz	500Hz	1000Hz	2000Hz	5000Hz	10000Hz	20000Hz	50000Hz
100pF	15,915,508	7,957,754	3,183,102	1,591,551	795,775	318,310	159,155	79,578	31,831
200pF	7,957,754	3,978,877	1,591,551	795,775	397,888	159,155	79,578	39,789	15,916
500pF	3,183,102	1,591,551	636,620	318,310	159,155	63,662	31,821	15,916	6,366
1000pF	1,591,551	795,775	318,310	159,155	79,578	31,831	15,916	7,958	3,183
2000pF	795,775	318,310	159,155	79,578	39,789	15,916	7,958	3,979	1,592
5000pF	318,310	159,155	63,662	31,831	15,916	6,366	3,183	1,592	637
10,000pF	159,155	79,578	31,831	15,916	7,958	3,183	1,592	796	318
20,000pF	79,578	31,831	15,916	7,958	3,979	1,592	796	318	159
50,000pF	31,831	15,916	6,366	3,183	1,592	637	318	159	64
100,000pF	15,916	7,958	3,183	1,592	796	318	159	80	32
200,000pF	7,958	3,979	1,592	796	398	159	80	40	16
500,000pF	3,183	1,592	637	318	159	64	32	16	6

Our Certificate

Our Workshop

Exhibition

FAQ

Q1.Can you send us a sample for testing?

A: If there is stock, it can be provided free of charge, and the general freight will be paid by your company.

Q2.Are the quality of these products guaranteed?

A: Most cables are certified. In addition, we have strict QC, and all products have been 100% tested before delivery.

Q3.What do I do when I want to customize a product?

A: We are equipped with professional equipment, technicians and skilled employees. OEM and customized services are welcome. Also welcome to visit our factory..

Q4.When can we receive the quotation?

A: Reply to the inquiry within 12 hours and quote within 24 hours.

Q5.How about the delivery time?

A: If we have stock, delivery will be quick. For newly produced products, the production time is 20 to 30 days.
