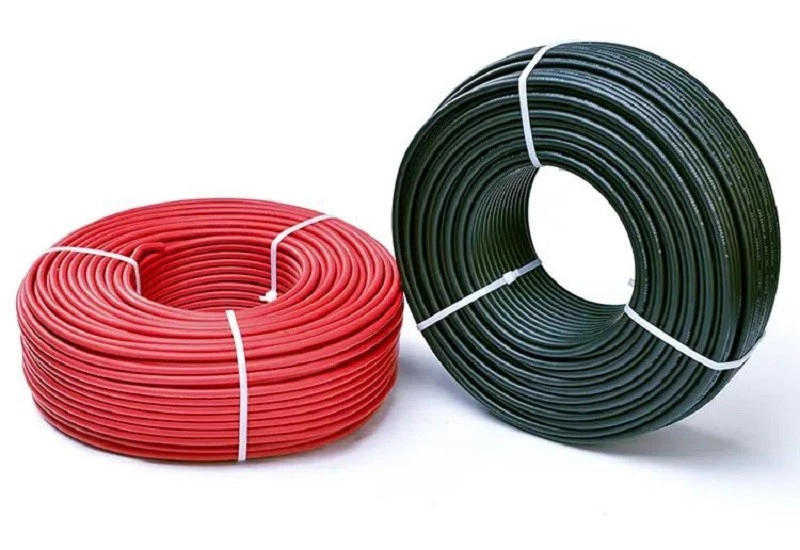

Pv Wire 10 Awg
Solar pv wire is a single conductor that connects panels of a solar photovoltaic energy system and is designed for frequent installation of solar panels in harsh outdoor environments.
Description:
A single copper conductor is stranded, and the insulation material is XLP cross-linked polyethylene that is resistant to moisture and high temperatures. Its temperature rating is up to 90°C in wet and dry applications.
Applications
For use in Photovoltaic (PV) Solar Power Applications.
Rated for direct burial
Used to connect solar panels.
Features
Stranded annealed copper conductors.
Sunilight resistant Cross-Linked Polyethelene (XLP) insulation
-40°C to +90°C
Standards
ASTM B8
Listed as type USE-2 per UL 854
Listed as type RHH/RHW-2 per UL 44
Listed as type PV per UL 4703
Specifications
Size: 10 AWG
Number of Strands: 7 or 19
Insulation Thickness (Conductor): 0.065 inches
Outside Diameter: 0.232 inches
Weight: 0.057 lbs per ft
Allowable Ampacity: 40 Amps at 90°C Wet/Dry
How to install the MC4 connector on your solar extension cable
stripping line
crimping
Insert the core into MC4MaleFemale
Tighten MC4 MaleFemale
Tools needed
Cable cutter
Cable Stripper
Crimping Tool
Connector Spanner
MC4 connectors
MC4 connectors
Metal connector
