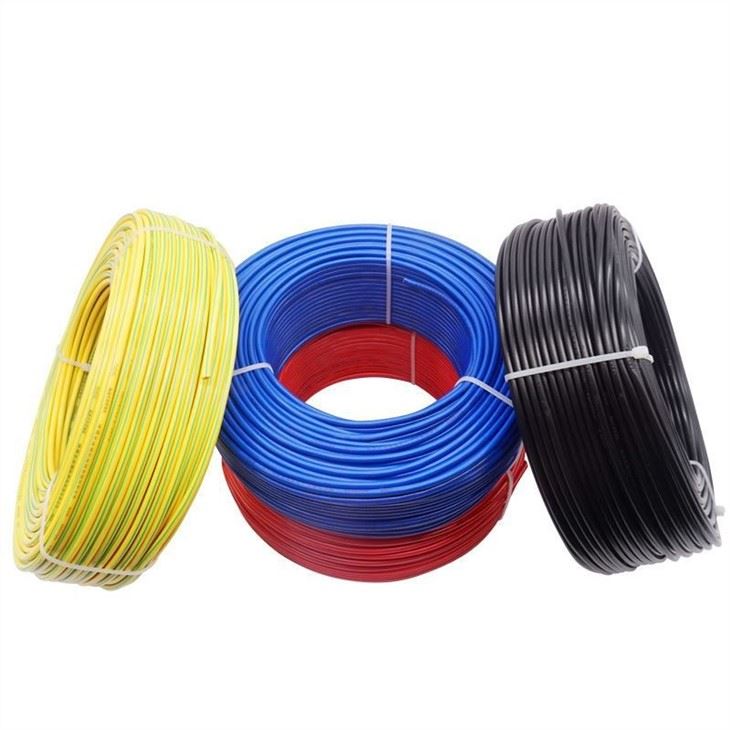

Single Core Cable 1.5 mm
Application: Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
Voltage: 300/500V 450/750V
Insulation Material: PVC
Sheath Material: PVC
Material Shape: Round Wire
Wire Core Material: Bare Copper Wire
Description
Model | HZ-45A | Brand | OEM |
Product name | Single core cable 1.5 mm | Type | Bare |
Application | Heating | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Rated Voltage | 300/500V 450/750V |
Insulation Material | PVC | Packing | Roll |
Core | One core | Certificated | ROHS/UL/CCC/VDE/ |
Application and Features
Single core cable wire is commonly used in families, and its Section specification and corresponding allowable current value (ampere) are:
1mm2 allowable current value 14a-18a 1.5mm2 allowable current value 17a-22a 2.5 mm2 allowable current value 23a-30a 4 mm2 allowable current value 30a-40a
Single core cable 1.5 mm can be used in various downlights, spotlights, headlights and other low-power appliances.
Single core cable 2.5 mm can be used for the main line of chandeliers in guest rooms, restaurants, bedrooms, etc.
Single core cable 4.0 mm can be used in refrigerators, washing machines and other high-power appliances. Some mainline versions also use 4 square meters.
Product
 |  |
 |  |
Technical Data
AWG Size | Conductor No./mm | Nom.O.D.（cm） | Nom.Insul.Thick.（cm） | Approx LBS/MFT | Ampacity@90℃ |
14 | Solid | 0.26 | 0.04 | 15 | 15 |
14 | 19/0.38 | 0.28 | 0.04 | 16 | 15 |
12 | Solid | 0.30 | 0.04 | 23 | 20 |
12 | 19/0.47 | 0.33 | 0.04 | 24 | 20 |
10 | Solid | 0.41 | 0.05 | 38 | 30 |
10 | 19/0.60 | 0.41 | 0.05 | 38 | 30 |
8 | 19/0.75 | 0.54 | 0.08 | 63 | 55 |
6 | 19/0.95 | 0.63 | 0.08 | 95 | 75 |
4 | 19/1.19 | 0.81 | 0.10 | 152 | 95 |
3 | 19/1.33 | 0.88 | 0.10 | 189 | 110 |
2 | 19/1.50 | 0.96 | 0.10 | 234 | 130 |
1 | 19/.0664 | 1.10 | 0.13 | 299 | 150 |
1/0 | 19/1.68 | 1.20 | 0.13 | 372 | 170 |
2/0 | 19/1.89 | 1.32 | 0.13 | 462 | 195 |
4/0 | 19/2.67 | 1.58 | 0.13 | 718 | 260 |
Our Company
Packaging
FAQ
1. Are you a manufacturer or a trading company?
We are a professional manufacturer. Welcome, we will meet you at Xiamen airport.
2. How can I get samples to test your quality?
Except for special products, most samples are free. It is expected that new customers will pay for express delivery.
3. What is your minimum order quantity?
Usually 3000m is used for trial orders. If the quantity is larger than the minimum order quantity, the price will be better. Sea transportation is the best choice.
4. Does your company accept OEM or ODM production?
Yes, we have experience in OEM and ODM. We just need to send detailed requirements.
5. Can I have a discount?
It depends on your quantity. We can give you a discount and pay the freight. Please contact us.
