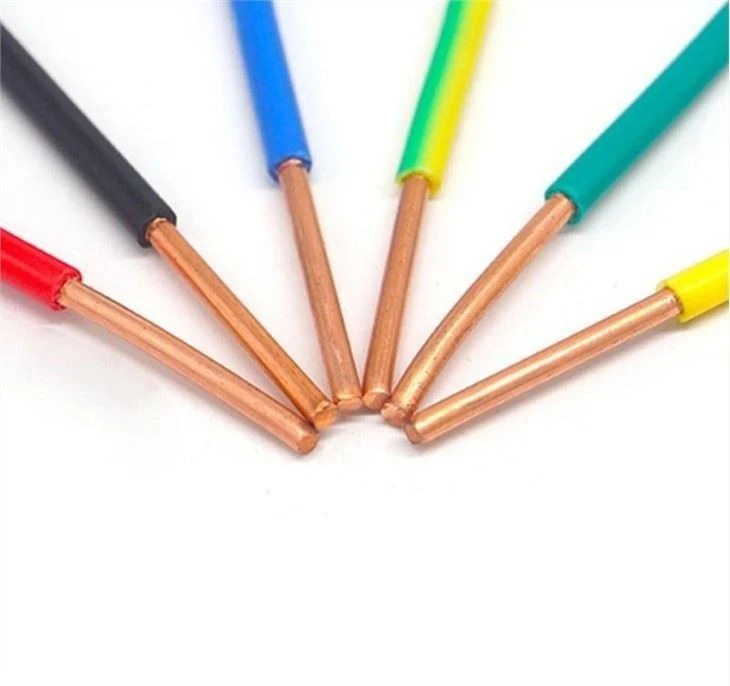

2mm Single Core Cable
Application: Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car
Voltage: 300/500V 450/750V
Insulation Material: PVC
Sheath Material: PVC
Material Shape: Round Wire
Wire Core Material: Bare Copper Wire
Description
|
Model |
HZ-59A |
Brand |
OEM |
|
Product name |
2mm single core cable |
Type |
Insulated |
|
Application |
Overhead, Housing Used |
Place of Origin |
Zhejiang,China |
|
Conductor Material |
Copper |
Rated Voltage |
300/500V 450/750V |
| Insulation Material |
PVC |
Packing |
Roll |
|
Color |
Red, Green, Yellow, Blue, Black |
Certificated |
CCC,IEC,ISO9001,CE |
Application and Features
2mm single core cable has excellent fire and heat resistance characteristics.
Higher reliability, energy efficiency, the highest level of safety and high oxygen index.
The highly flexible nature makes it easy to operate on site. It is made of special PVC compounds and can work in challenging working conditions and atmosphere. High wear resistance (Mechanical) bearing capacity.
2mm single core cable is generally used for building wiring, feeder and branch circuits, and internal secondary industry
distribution. They are installed in surface mounted or embedded conduits or similar closed systems and are used for fixed protection, as well as lighting fittings and internal appliances, switchgear and control devices.
Product
 |
 |
 |
 |
Technical Data
|
AWG Size
|
Conductor No./mm
|
Nom.O.D.(cm)
|
Nom.Insul.Thick.(cm)
|
Approx LBS/MFT
|
Ampacity@90℃
|
|
14
|
Solid
|
0.26
|
0.04
|
15
|
15
|
|
14
|
19/0.38
|
0.28
|
0.04
|
16
|
15
|
|
12
|
Solid
|
0.30
|
0.04
|
23
|
20
|
|
12
|
19/0.47
|
0.33
|
0.04
|
24
|
20
|
|
10
|
Solid
|
0.41
|
0.05
|
38
|
30
|
|
10
|
19/0.60
|
0.41
|
0.05
|
38
|
30
|
|
8
|
19/0.75
|
0.54
|
0.08
|
63
|
55
|
|
6
|
19/0.95
|
0.63
|
0.08
|
95
|
75
|
|
4
|
19/1.19
|
0.81
|
0.10
|
152
|
95
|
|
3
|
19/1.33
|
0.88
|
0.10
|
189
|
110
|
|
2
|
19/1.50
|
0.96
|
0.10
|
234
|
130
|
|
1
|
19/.0664
|
1.10
|
0.13
|
299
|
150
|
|
1/0
|
19/1.68
|
1.20
|
0.13
|
372
|
170
|
|
2/0
|
19/1.89
|
1.32
|
0.13
|
462
|
195
|
|
4/0
|
19/2.67
|
1.58
|
0.13
|
718
|
260
|
