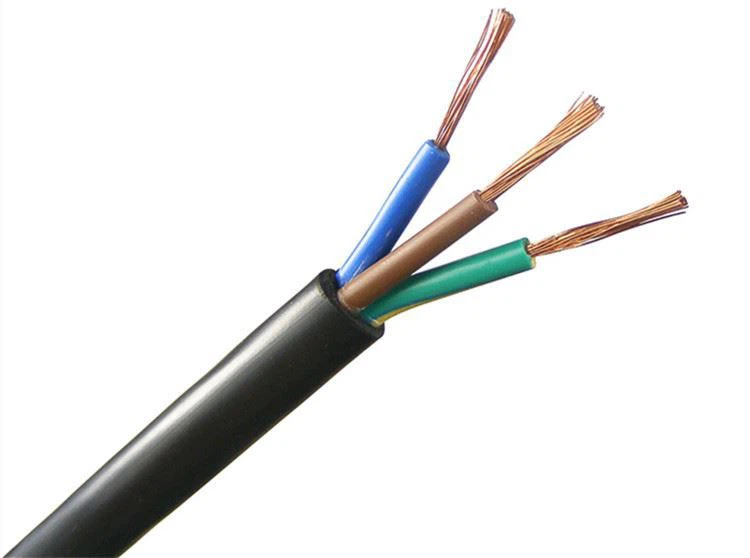

2.5 mm 3 Core Flexible Cable

Type: Insulated
Conductor Type: Flexible Wire
Application: General Purpose Indoor and Outdoor, Electrical Too
Conductor Material: Copper
Sheath Material: PVC
Insulation Material: PVC

Send Inquiry

Description

Model	HZ-017C	Brand	OEM
Product name	2.5 mm 3 core flexible cable	Type	insulated, H03VV-F;H05VV-F
Application	Heating	Place of Origin	Zhejiang,China
Conductor Material	Copper	Rated Voltage	300/500V
Jacket	PVC	Package	Carton
Color	White,black,grey or OEM	certificated	ISO9001

Application and Features

2.5 mm 3 core flexible cable is used for lighting, electronic equipment, instruments and communication equipment with rated voltage below 450 / 750V.

1. When the wire is used in AC system, the rated voltage of the wire shall be equal to or higher than the rated voltage of the system. If wires are used in DC system, the rated voltage of the system shall be less than 1.5 times of the rated voltage of cables and wires. The working voltage of the system can reach 1.1 times of the rated voltage of the cable.

2. The long-term working temperature shall be lower than 70 ℃. The working temperature of BV - 90 shall be lower than 90 ℃. The laying temperature shall be higher than 0 ℃.

3. The bending diameter of wire shall be greater than 8 times of the outer diameter of cable and wire if the outer diameter of cable and wire is 25mm or more. If the diameter of cables and wires is more than 25mm, the bending diameter shall be at least 12 times the outer diameter of cables and wires.

Product

Technical Data

Voltage Level (V)	Nominal section (mm²)	Toplimit of overall diameter (mm)	Maximum DC resistance (20℃)	Minimum insulation resistance (70℃)	Recommended value of carrying capacity (A)	Reference weight (KG,KM)



300/300	2x0.5	5.9	3.9	0.012	10	37
	2x0.75	6.3	26.0	0.01	13	47
	3x0.5	6.3	39.0	0.012	8	44
	3x0.75	6.7	26.0	0.01	10	58
	2x0.75	7.2	26.0	0.011	13	58
300/500	2x1.0	7.5	19.5	0.01	16	66
	2x1.5	8.6	13.30	0.01	20	89
	2x2.5	10.6	7.98	0.009	27	137
	2x4	12.4	4.95	0.007	38	205
	2x6	14.5	3.30	0.006	50	280
	3x0.75	7.6	26.00	0.011	9	70
	3x1.0	8.0	19.50	0.01	11	80
	3x1.5	9.4	13.300	0.01	12	112
	3x2.5	11.4	7.980	0.009	21	172
	3x4	13.5	4.950	0.007	27	255
	3x6	14.0	3.30	0.006	34	340
	4x0.75	8.3	26.0	0.011	10	84
	4x1.0	9.0	19.50	0.01	12	101
	4x1.5	10.5	13.30	0.01	13	141
	4x2.5	12.5	7.98	0.009	21	210
	4x4	14.6	4.95	0.007	27	310
	4x6	16.0	3.30	0.006	35	425
	5x0.75	9.3	26.00	0.011	10	103
	5x1.0	9.8	19.50	0.01	12	119
	5x1.5	11.6	13.30	0.01	13	172
	5x2.5	13.9	7.98	0.009	22	257
	5x4	16.5	4.95	0.007	27	386
	5x6	17.3	3.30	0.006	35	518

Our Company

Packaging

FAQ

1. What kind of certification do you have?

UL、CE、VDE、ISO9001-2000、SGS

2. What markets are you mainly involved in?

Our products are mainly exported to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia and so on.

3. What standards do you follow when producing wires and cables?

It can produce GB, JB, IEC, BS, DIN, ASTM, JIS, NF, as / NZS, CSA and other standard wires and cables. Standardize customer supply.

4. What is the minimum value. Order quantity?

This depends on the type and size of wires and cables. For some small wires, 100 meters is acceptable. However, medium and high voltage power cables shall conform to the characteristics of the installed equipment. In any case, if you have special requirements, we will try our best to solve the problem and meet the requirements.

5. What is the weekly or monthly production capacity?

This depends on the type and size of the power cord. The total monthly output is about. The price of insulated aluminum cable is about US $3000000.00. Insulated copper cable USD800, 000, 000.00.

6. Do you provide installation services for customers abroad?

We have no professional installation team abroad. But if necessary, we will recommend our partners to cooperate with you.
