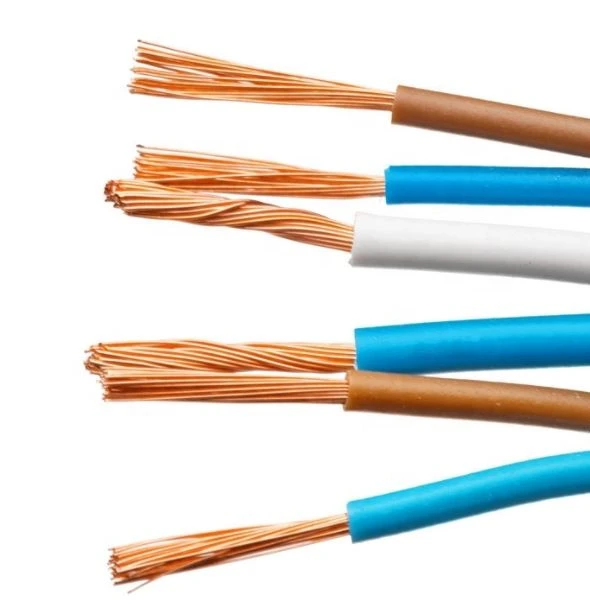

Thin Flexible Wire
16 gauge solid wire is the preferred wire for outdoor or rugged applications that may expose wires to corrosive elements, harsh weather conditions or frequent movement.
Description
Model | HZ-09B | Brand | OEM |
Product name | Thin flexible wire | Type | Flexible cable |
Application | Electrical control lines | Place of Origin | Zhejiang,China(Mainland) |
Cable | H05VV-F 3C*0.75/1.0/1.5mm2 | Voltage Rating | 250V |
Color | Black or customized | Transport Package | Carton |
Jacket | PVC | certificated | ISO9001, CE, UL, CCC, RoHS, VDE |
Application and Features
Thin flexible wire is a copper core PVC insulated cable, which is an excellent ideal cable. The conductor adopts single strand soft copper wire, single strand or multi strand. The cable is used for general purposes as a building wire for power, lighting and electrical control lines, and is suitable for conduit and fixed and protected installation. The cable can be flame-retardant and fire-resistant.
Product
Technical Data
UL Type | Conductor | Insulation | Shielded | Jacket | Dielectric Strength | |||
2517 | AWG | Construction (No./mm) | cores.No
| Thickness (mm) | OD (mm) | (No./mm) | OD
| (Vac,1min)
|
30 | 7/0.10 |
Above2cores | 0.38 | Above1.10 | 16/4/0.10 | Above4.30 | 2000 | |
28 | 7/0.127 | 0.38 | Above1.20 | 16/5/0.10 | Above4.50 | 2000 | ||
26 | 7/0.16 | 0.38 | Above1.30 | 16/4/0.10 | Above4.80 | 2000 | ||
24 | 11/0.16 | 0.38 | Above1.40 | 16/4/0.10 | Above5.00 | 2000 | ||
22 | 17/0.16 | 0.38 | Above1.60 | 16/4/0.10 | Above5.40 | 2000 | ||
20 | 26/0.16 | 0.38 | Above1.70 | 16/4/0.10 | Above5.80 | 2000 | ||
18 | 41/0.16 | 0.38 | above1.80 | 16/4/0.10 | Above6.10 | 2000 | ||
Note: the specific chip number and shielding can be customized according to customer needs. | ||||||||
Our Company
Packaging
FAQ
1. Are you a manufacturer or a trading company?
We are a professional cable manufacturer with 10 years of production experience.
2. What is the minimum order quantity of your company?
Our company has a minimum order quantity requirement, but we also accept a small amount.
3. Are the quality of these products guaranteed?
Most cables are certified. In addition, we have strict quality control, and all products have been 100% tested before delivery. The quality is guaranteed.
4. What should I do when I want to customize the product?
We are equipped with professional equipment, technicians and skilled employees. OEM and customized services are welcome. Drawings / samples required.
5. If I want to buy, how do I pay?
Usually we make t / T with 30% deposit before production, and 70% balance is comparable to the copy of bill of lading. Payment terms can also be negotiated according to the requirements of customers.
6. What is the delivery time and mode of transportation after I pay?
The goods can be transported by air, express or sea; FedEx, UPS, DHL, TNT and other international express; You can choose the best way according to your needs. As for the delivery time, 10 ~ 20 days.
