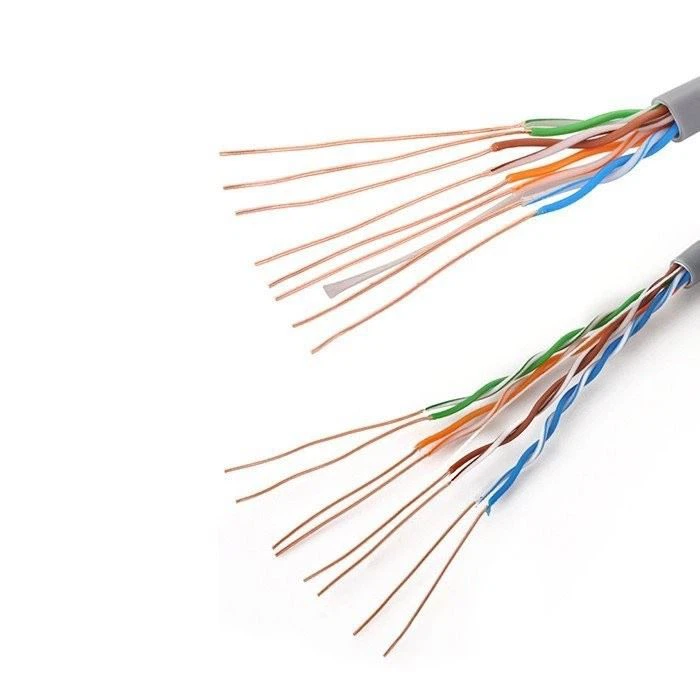

Cat5e External Cable
Application: Local Communication Cable, LAN Cable
Conductor Material: Copper
Cover Material: PVC
Type: Cat 5
Material Shape: Round Wire
Conductor Type: Stranded
Description
|
Model |
HZ-010F |
Brand |
OEM |
|
Product Name |
Cat5e External Cable |
Type |
Cat 5e |
|
Application |
Local Communication Cable, LAN Cable, Network Cable |
Inner Conductor |
24 AWG Bc |
|
Wire Core Material |
Bare Copper Wire |
Place of Origin |
Zhejiang,China(Mainland) |
|
Jacket |
PVC/PE |
Transport Package |
Pull out Box, Carton Box, Pallet |
|
Shield |
FTP/SFTP AL FOIL+AL braiding |
Certificated |
RoHS,CE,ISO |
Application and Features
CAT5e external cable is specially used for structured cabling, language transmission and data signal transmission. It is suitable for network connection between wireless equipment terminals such as computers, televisions, routers, TV set-top boxes and other equipment.
CAT5e external cable is also suitable for current high bandwidth applications and intelligent solutions.
Product
 |
 |
 |
 |
Technical Data
|
Frequency(100m) |
RL |
IL |
DOP |
Delay Skew |
Next |
PSNEXT |
ACR-F |
PS ACR-F |
|
(MHz) |
(dB) |
(dB) |
(ns) |
(ns) |
(dB) |
(dB) |
(dB) |
(dB) |
|
1 |
20.0 |
2.2 |
570 |
45 |
65 |
62 |
61 |
61 |
|
4 |
23.0 |
4.2 |
552 |
45 |
56 |
53 |
48 |
48 |
|
10 |
25.0 |
6.5 |
545 |
45 |
50 |
47 |
41 |
41 |
|
16 |
25.0 |
8.4 |
543 |
45 |
47 |
44 |
36 |
36 |
|
20 |
25.0 |
9.3 |
542 |
45 |
45 |
42 |
34 |
34 |
|
31.25 |
23.6 |
11.6 |
540 |
45 |
42 |
39 |
31 |
31 |
|
62.5 |
21.5 |
17.0 |
538 |
45 |
38 |
35 |
25 |
25 |
|
100 |
20.1 |
22.0 |
537 |
45 |
35 |
32 |
21 |
21 |
|
Note The above transmission performance for the 100M, 20±2°C under the conditions tested. |
||||||||
Our Company
Packaging
FAQ
Q1.Can I print my logo on the cable?
A: Yes. Please inform us formally before our production.
Q2.How do you ship the goods and how long does it take to arrive?
A: Usually by sea. (sample orders can also be sent by air or express).
Q3.What is your regular packing?
A: 100M / plastic bucket or wooden bucket, 305m / wooden bucket or color box. However, we can produce according to your needs.
Q4.What kind of products can your company provide?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable, etc.
Q5.Do you provide samples? Is it free or extra?
A: Yes, we welcome sample orders to test and check the quality. We can provide samples free of charge, but we don't pay the freight.
