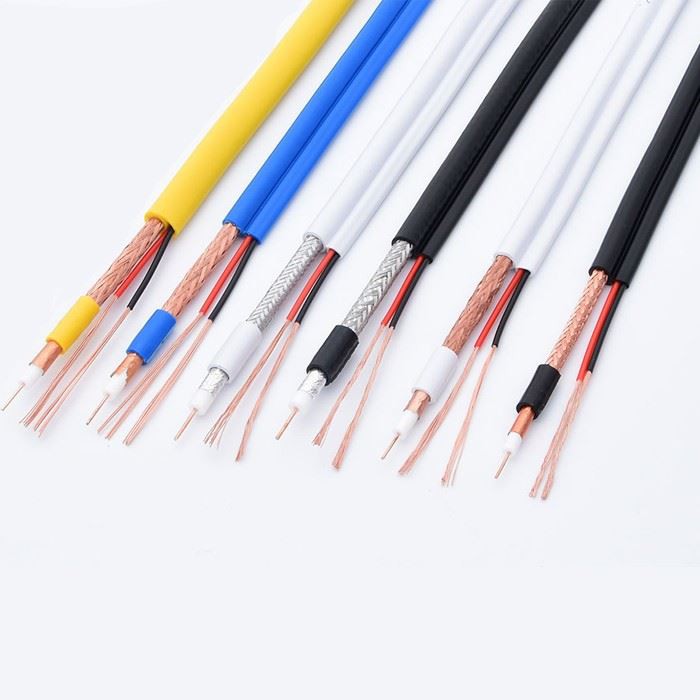

Rg11 Coaxial Cable Direct Burial
We use reliable materials to manufacture RG6 CCS coaxial cable.Manufacturing high-quality cables begins with the use of high-quality materials and components.
Description
| Model | RG11 | Central conductor | BC/CCS |
| Brand | OEM | First shielding layer | Al Foil+Al Braiding |
| Product name | rg11 coaxial cable direct burial | Second shielding | Aluminum magnesium alloy |
| Shield | Al Foil+braiding | Woven mesh | 32, 48, 64, 80, 96, 128, etc. |
| Jacket | PVC or PE | Application | Communication |
| Dielectric: | Foamed polyethylene | Certificate: | CE、RoHS、CCC、UL |
Application and Features
RG11 coaxial cable direct burial is generally used in CATV community antenna TV, CCTV closed-circuit TV and DBS live satellite.
The company has standard workshops and advanced testing and production equipment. RG11 coaxial cable direct burial products strictly follow ISO 9000 and ISO 14001 systems. We always strictly follow ISO 9000 and ISO 14001 systems. In addition to being listed by UL and ETL, all our products also comply with RoHS and CE standards.
RG11 packaging of coaxial cable direct burial: inner packaging 100 or 200m / roll, 305m (1000ft) wooden wire shaft or plastic reel; Outer packing carton, pallet optional.
Products RG11 coaxial cable direct burial are mainly exported to Eastern Europe, North America, the Middle East / Africa, central / South America, Asia, Western Europe, Australia and other countries.
Product
Technical Data
@ Frequency (MHz) | dB/100 ft (MAX.) |
5 MHz | 0.38 dB |
55 MHz | 0.96dB |
211 MHz | 1.89 dB |
250 MHz | 2.05 dB |
270 MHz | 2.21 dB |
300 MHz | 2.25 dB |
330 MHz | 2.35 dB |
350 MHz | 2.42dB |
400 MHz | 2.60dB |
450 MHz | 2.75 dB |
500 MHz | 2.89 dB |
550 MHz | 3.04 dB |
600 MHz | 3.18 dB |
750 MHz | 3.65dB |
870 MHz | 4.06dB |
1000 MHz | 4.35dB |
1300 MHz | 5.65dB |
1450 MHz | 6.31dB |
1750 MHz | 7.61dB |
2150 MHz | 9.35 dB |
2600 MHz | 11.31 dB |
2832 MHz | 12.32dB |
3000 MHz | 13.05 dB |
Our Company
Packaging
FAQ
1. Can you send samples?
Of course, we can send samples all over the world. Our samples are free, but customers need to bear the express cost.
2. About product price?
Due to the cyclical changes in raw material prices, prices vary from period to period.
3. What are the certifications of your products?
We have ISO 9001, SGS, EWC and other certifications.
4. How long will your delivery time take?
In general, our delivery time is about 20-30 days. If there is a great demand or special circumstances, it may be delayed.
5. Can I visit your factory?
Of course, we welcome customers from all over the world to visit our factory. However, some factories are not open to the public.
6. Does the product have quality inspection before loading?
Of course, all our products undergo strict quality inspection before packaging, and unqualified products will be destroyed.
