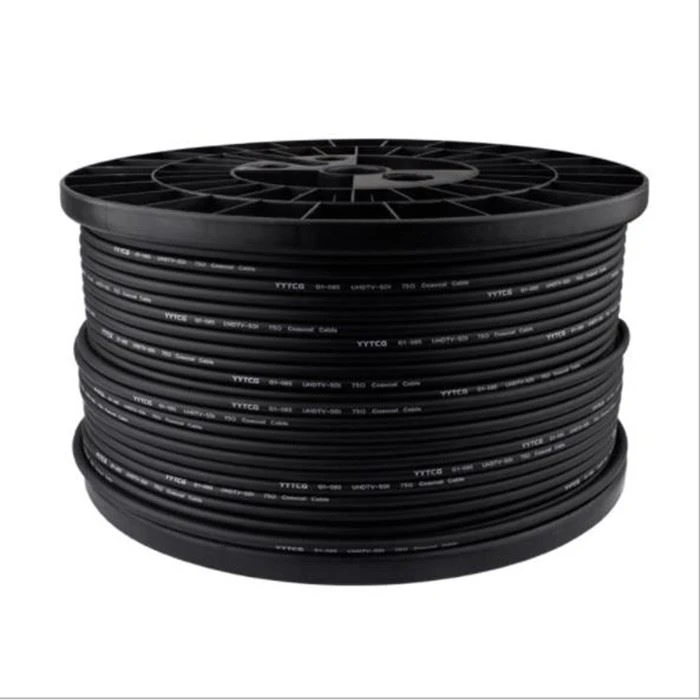

RG6 2c Coaxial Cable
We can manufacture and supply coaxial cable, LAN cable, optical fiber cable and cable components.
RG6 2c coaxial Cable
Application and Features
In order to satisfy customers, in addition to the regular production of RG6 2C coaxial cable, the company can provide OEM services, and the contents of your logo, products and packaging can be adjusted appropriately.
The delivery date of RG6 2C coaxial cable usually takes 20-30 days after the order is confirmed (the deposit is received).
It is added here: Although we are a manufacturer, even if some products are not produced by ourselves, we have strategic partners to obtain the most favorable prices because of the large demand of our customers. Therefore, our customers have given us many years of experience and response, and our price is very competitive.
The company attaches great importance to our reputation. We provide high-quality products and win the trust of customers all over the world. We are honored to regard our customers and our suppliers as long-term partners.
Description
Model: RG6 2C coaxial cable
Application: Local communication cable, coaxial cable
Conductor material: BC/CCS/CCA/TC/CU/CCAG
Color: white, black, custom
Length: 305m / 1000ft
Package: wooden bucket + paper box
Application
Product
Technical Data
Model | RG6 2c coaxial Cable | ||||||||||||||||||
Product | RG-6 70% | ||||||||||||||||||
Inner Conductor | Copper Clad Steel | ||||||||||||||||||
18% conductivity | |||||||||||||||||||
Braid Coverage, Aluminum Wire | 70% | ||||||||||||||||||
Center Conductor Diametter (mm) | 1.02 ± 0.01 | ||||||||||||||||||
Bonded Foam PE Dielectric (mm) | 4.62 ± 0.10 | ||||||||||||||||||
Sealed APA Tape (mm) | 4.75 ± 0.10 (AP) | ||||||||||||||||||
Aluminum Braiding (mm) | 5.16 | ||||||||||||||||||
(16×8×0.12 mm) | |||||||||||||||||||
PVC Jacket (mm) | 6.80 ± 0.10 | ||||||||||||||||||
Nominal DC Resistance @ 20°C | |||||||||||||||||||
Inner Conductor (ohms/km) | 102 | ||||||||||||||||||
Outer Conductor (ohms/km) | 40 | ||||||||||||||||||
Loop (ohms/km) | 142 | ||||||||||||||||||
Nominal Capacitance | 53.0 pF/m | ||||||||||||||||||
Impedance (ohms) | 75 ± 3 ohms | ||||||||||||||||||
Velocity of Propagation | 85% nominal | ||||||||||||||||||
1000-feet reel (cm) RG6 WITH POWER | 38×38×31 cm | ||||||||||||||||||
Weight (kg) RG6 WITH POWER | 19/20.5 | ||||||||||||||||||
Frequency MHz | 5 | 55 | 211 | 250 | 270 | 300 | 330 | 400 | 450 | 500 | 550 | 600 | 750 | 870 | 1000 | 1500 | 2000 | 2050 | 2200 |
Nominal dB / 100m | 4.62 | 6.48 | 9.21 | 9.92 | 10.29 | 10.83 | 11.36 | 12.60 | 13.45 | 14.26 | 15.09 | 15.84 | 18.05 | 19.62 | 21.22 | 26.79 | 31.6 | 30.76 | 30.00 |
Our Certificate
Our Workshop
Exhibition
