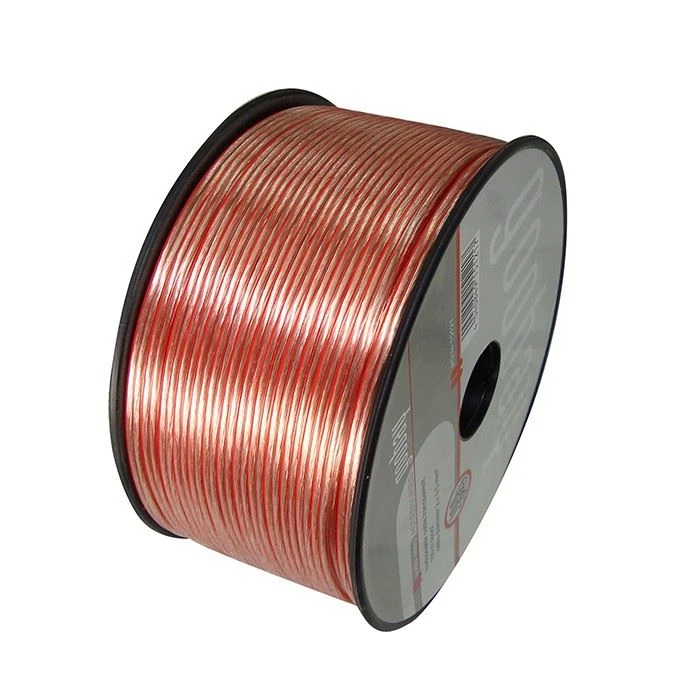

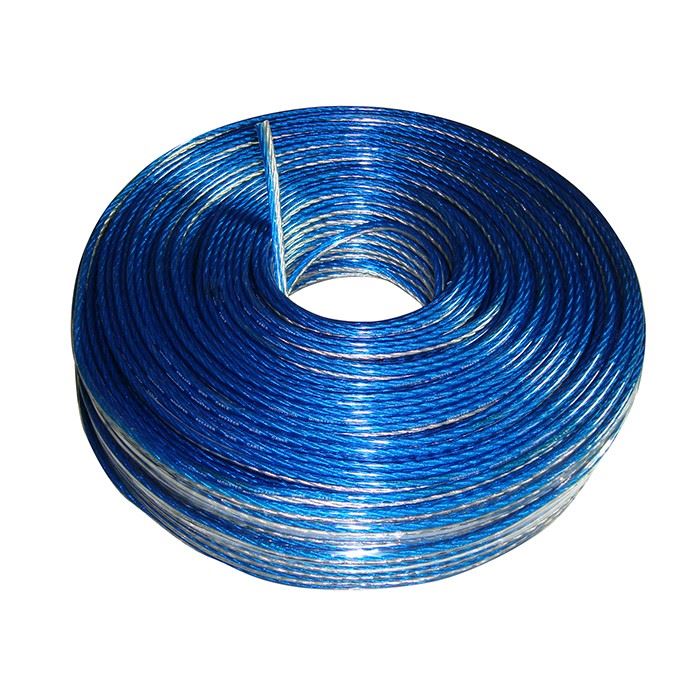

8 Gauge Speaker Wire
The diameter of each wire is 0.25mm), automotive grade "GPT" PVC insulation material, oil and gas resistance, and the temperature range is - 40 ℃ to + 176 ℃.
8 Gauge Speaker Wire
Application and Features
The company has many years of cable manufacturing experience. We mainly produce 8 gauge speaker wires and various wires and cables for home fixed wiring and electrical equipment connection systems. Such as bv (single core cable), BVV, BVVB (flat cable), BVVB + e, RV (flexible core cable), RVV (flexible multi-core cable), battery cable, power cable, etc.
The other is transparent horn wire and PVC horn wire. This cable is suitable for audio equipment and household small electric toll collectors and meters.
In recent years, the sales volume of 8 gauge speaker wire has been selling well. Therefore, we have expanded our business scope, such as telephone line, network cable, fire alarm line, microphone line, car audio amplifier Wiring Kit. Our new cable series enjoys a good reputation and sells well in many countries.
Quality is our first principle. Our products are delivered on time and at competitive prices, and sell well in domestic and international markets, such as Europe, Southeast Asia, Africa, the Middle East, Mexico and other countries.
Description
Product name:8 gauge speaker wire
Samples: provide free samples
Package: 610m / roll
Color optional: any color
Mass production delivery period: 15-30 days
Appliance: internal wiring of electronic and electrical equipment
Transport package: roll or spool packaging, stretch film packaging, automobile
Specification: customized
Rated temperature: 80 º C
Rated voltage: 300V
Housing: PVC insulation
Passed UL VW-1 & CSA FT1 vertical combustion test
The insulation thickness of the wire is uniform and easy to strip and cut
Applicable to internal wiring of general electric appliance
Application
Product
Technical Data
Finished Products | Maximum Resistance at 20ºC | ||||
AWG/NO.OFCOND | Cond No. | Insulation Avg. Thick. | Outside Dia. | Packing | |
/mm | mm | mm | m/r | Ω/mm | |
30×2C | 7/0.1 | 0.45 | 1.20×2.50 | 610 | 354.33 |
28×2C | 7/0.127 | 0.45 | 1.30×2.70 | 610 | 223.75 |
26×2C | 7/0.16 | 0.45 | 1.40×2.90 | 610 | 139.76 |
24×2C | 11/0.16 | 0.45 | 1.50×3.10 | 610 | 88.36 |
22×2C | 17/0.16 | 0.45 | 1.70×3.50 | 610 | 60.16 |
20×2C | 21/0.178 | 0.45 | 1.90×3.90 | 305 | 38.58 |
18×2C | 34/0.178 | 0.45 | 2.10×4.30 | 305 | 22.98 |
16×2C | 26/0.254 | 0.45 | 2.40×4.90 | 305 | 15.06 |
