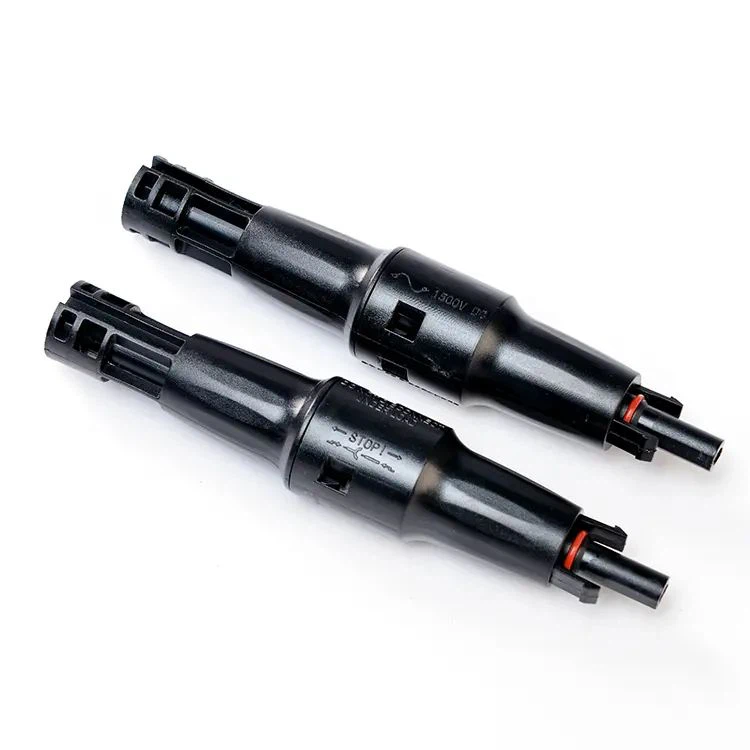

Mc4 Inline Fuse

What size MC4 inline fuse?
Do MC4 connectors have fuses?
How many amps can a MC4 connector handle?
Why do I need a inline fuse?
How many amps should my inline fuse be?
How do I know what size fuse to use for my solar panel?
What size fuse do I need for 200 watt solar panel?
Should I put a fuse between solar panel and charge controller?
Should I fuse each solar panel?
Do I need to fuse each solar panel?
Do I need a fuse for each solar panel in parallel?
Do I need to fuse 2 solar panels in parallel?
Why does my solar panel fuse keep blowing?
How do you replace a solar panel fuse?
What is the maximum fuse rating for solar panels?
What type of fuse is the MC4 connector?
How many MC4 connectors do I need per panel?
What size wire is needed for MC4?



What size MC4 inline fuse?

Select the MC4 series fuse size based on the maximum current of the solar panel system. Please consult our professionals for proper ampere rating.

Do MC4 connectors have fuses?

No, MC4 connectors typically do not have built-in fuses. Fuses are often added separately in the wiring, using MC4 inline fuse holders, to protect the solar panel system from overcurrent.

How many amps can a MC4 connector handle?

MC4 connectors commonly handle currents up to 30 amps, but higher-rated versions are available for larger systems, typically ranging from 30 to 100 amps. Check the connector specifications for the specific amp rating.

Why do I need a inline fuse?

An inline fuse protects your solar panel system by breaking the circuit in case of overcurrent, preventing damage to equipment and reducing the risk of fire.

How many amps should my inline fuse be?

Select the series fuse amperage based on the maximum current draw of your solar panel system. Please consult our professionals for appropriate ratings.

How do I know what size fuse to use for my solar panel?

Determine the appropriate fuse size for your solar panel by checking the system's maximum current draw in amps. Please consult our professionals for guidance.

What size fuse do I need for 200 watt solar panel?

For a 200-watt solar panel, choose a fuse size that matches or is slightly higher than the panel's maximum current output. Check panel specifications or ask us for specific current ratings.

Should I put a fuse between solar panel and charge controller?

Yes, it's generally recommended to have a fuse between the solar panel and the charge controller. The fuse helps protect the system from overcurrent, short circuits, and other electrical faults. It adds a layer of safety, preventing damage to the charge controller and other components in the event of a malfunction. Make sure to choose a fuse with an amperage rating suitable for your solar panel's maximum current output. Consult the system specifications or a professional for guidance on the appropriate fuse size.

Should I fuse each solar panel?

It may be a good idea to fuse each solar panel individually. This provides additional protection and isolates problems with individual panels, simplifying troubleshooting. Be sure to use a fuse with the correct ampere rating and follow local electrical codes. Sometimes, a centralized fuse configuration is also chosen, placed between the solar panel and the charge controller or inverter. The choice depends on design, system size and security needs.

Do I need to fuse each solar panel?

extra protection, isolating potential issues with one panel. It simplifies troubleshooting and helps identify problematic panels. While centralized fusing is an option, using panel-specific fuses can be prudent, ensuring localized protection. Consider the overall system design, safety standards, and consult specifications for appropriate fuse ratings based on each panel's specifications.

Do I need a fuse for each solar panel in parallel?

Fusing each solar panel in parallel isn't mandatory but adds a layer of protection. Individual fuses can isolate issues, aiding troubleshooting. While some use centralized fusing, panel-specific fuses offer localized protection. Consider system design, safety, and refer to panel specifications for appropriate fuse ratings.

Do I need to fuse 2 solar panels in parallel?

Fusing two solar panels in parallel isn't mandatory but enhances safety. Individual fuses offer localized protection, isolating potential issues. While centralized fusing is an option, panel-specific fuses can simplify troubleshooting. Consider system design and safety, consulting panel specifications for appropriate fuse ratings.

Why does my solar panel fuse keep blowing?

Your solar panel fuse may keep blowing due to overcurrent, a short circuit, or a fault in the system. Check for wiring issues, panel damage, or mismatched components. Ensure the fuse rating matches the panel's specifications. If issues persist, consult a professional for a thorough assessment.

How do you replace a solar panel fuse?

To replace a solar panel fuse, disconnect the power source, locate the blown fuse, remove it, and replace it with a new one of the same rating. Ensure proper fuse size, follow safety guidelines, and consult the panel's manual if needed. If unsure, seek professional assistance.

What is the maximum fuse rating for solar panels?

The maximum fuse rating for solar panels depends on the panel's specifications. Typically, fuses range from 15 to 30 amps for standard residential panels, but larger systems may require higher-rated fuses. Always refer to the panel manufacturer's guidelines to determine the appropriate fuse rating for your specific solar panels.

What type of fuse is the MC4 connector?

MC4 connectors themselves do not typically include fuses. However, inline fuse holders with appropriate fuses are often added to the wiring between solar panels and charge controllers for overcurrent protection. Choose fuses based on system specifications and amperage requirements.

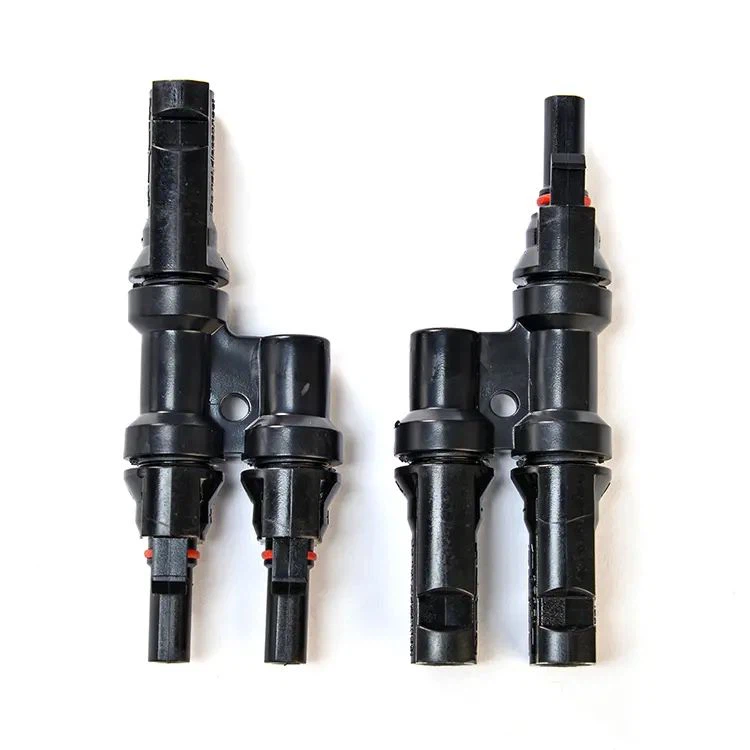

How many MC4 connectors do I need per panel?

Typically, you need two MC4 connectors per solar panel-one male and one female. The male connector from one panel pairs with the female connector from another, facilitating the series or parallel connection of panels. Ensure proper polarity alignment during connection.

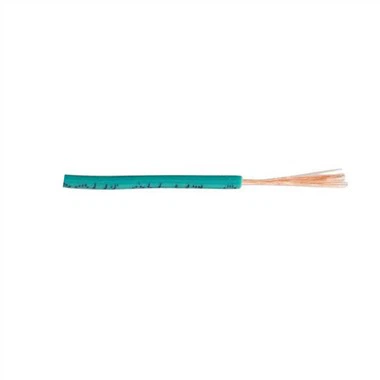

What size wire is needed for MC4?

The wire size for MC4 connectors depends on the current (amperage) of your solar panels. Commonly, 10 AWG (American Wire Gauge) or 4mm² cable is used for smaller systems, but larger systems with higher currents may require thicker cables, such as 8 AWG or 6mm².
