Solar Branch Connectors
3 in 1 Y Type Solar Panel Connector
* Y Branch parallel Connector (1 male to 2 female and 1 female to 2 male)
* The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion.
* Suitable Single Core Cable Section: 1.5mm² -- 6mm²
* Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
solar branch connector
| 1 | High-quality tinned copper conductor is anti-oxidation and increases service life |
| 2 | Oxygen-free copper,the conductivity is good |
| 3 | IP67 design is waterproof and dusproof |
| 4 | TUV approved |
Y TYPE CONNECTOR
|
● Product name Extension cable
● Part-Cable length Cusotmized on request
|
● Part-Cable size 2.5mm²/4.0mm²/6.0mm²
● Part-Solar connector 1000V or 1500V Solar |
APPLICATIONS
● Solar connectors play a crucial role in connecting different components, such as combiner boxes, controllers, and inverters in a photovoltaic power generation system.these connectors are essential for gathering the electrical energy of a large number of solar panels and channeling it into the inverter.

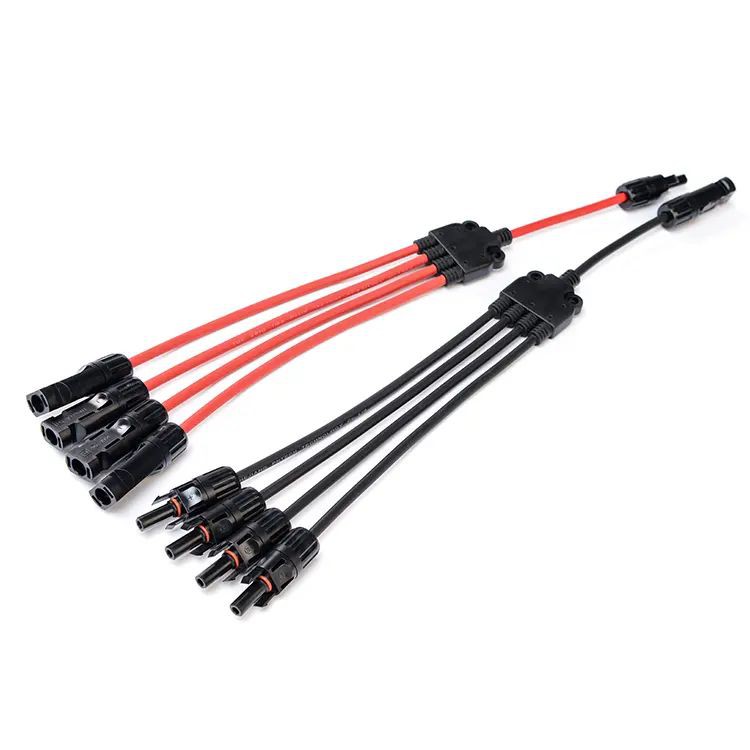

| Product No. Branch Rated Voltage Total length/mm Solar cable size | |||||
| Solar-Y 2 in 1 TUV 1000V DC 300mm 4.0mm²/6.0mm² | |||||
| Solar-3Y 3 in 1 TUV 1000V DC 300mm 4.0mm²/6.0mm² | |||||
| Solar-4Y 4 in 1 TUV 1000V DC 750mm 4.0mm²/6.0mm² |
Parallel Branch Connector
The Parallel Branch Connector allows multiple components to connect and operate simultaneously in an electrical circuit.

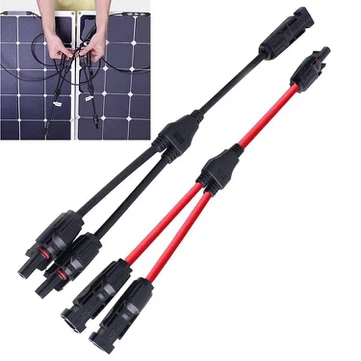

Y-Branch Cable Connector
Y-Branch Cable Connector splits a single cable into two branches, enabling multiple connections or devices from a single source.
3 to 1 y branch pv connectors cable
3 to 1 Y-Branch PV connector cable allows one solar panel to connect with three devices, increasing energy distribution.
| Y TYPE CONNECTOR | |
| NAME | SOLAR CONNECTOR |
| RATED CURRENT | 130A,45A |
| RATED VOLTAGE | 1000V DC |
| TEST VOLTAGE | 6000V(50HZ,1MIN) |
| OVERVOLTAGE TYPEPOLLUTIONO DEGREE | CAT112 |
| CONTACT RESISTANCE OF PLUG CONNECTOR | 1MQ |
| CONTACT MATERIAL | (COPPER, TIN-PLATED |
| INSULATION MATERIAL | IPPO |
| DEGREE OF PROTECTION | IIP67 |
| SAFETY CLASS | |
| SUITABLE CABLE | 2.5MM2,4MM2,6MM2 |
| INSERTION FORCE/WITHDRAWAL FORCE | S50N/250N |
| CONNECTING SYSTEM | CRIMP CONNECTION |
| OPERATING TEMPERATURE | -40*C--+85*C |
BUCKLE SHELL DESIGN
The Parallel Branch Connector features a robust buckle shell design, providing a tight and secure connection that can withstand the harshest environmental conditions. Its durable construction is ideal for challenging applications, ensuring reliable performance even in extreme settings.
HIGH VOLTAGE AND CURRENT CARRYING CAPACITY
The Parallel Branch Connector boasts a high voltage and current carrying capacity. Its terminals are crafted from high-purity electrolytic copper using precision stamping techniques, ensuring robust electrical performance in demanding applications.
USE PPO/PPE MATERIAL
Constructed with PPO/PPE material, this connector offers excellent flame retardant properties and can withstand high temperatures within the range of -40℃ to +85℃, ensuring safety and reliability in various environments.
WATERPROOF GRADE IP67
The Parallel Branch Connector is rated at IP67 for waterproofing, featuring a high-quality waterproof ring, making it effective in keeping out water and dust, ensuring reliable performance even in challenging conditions.

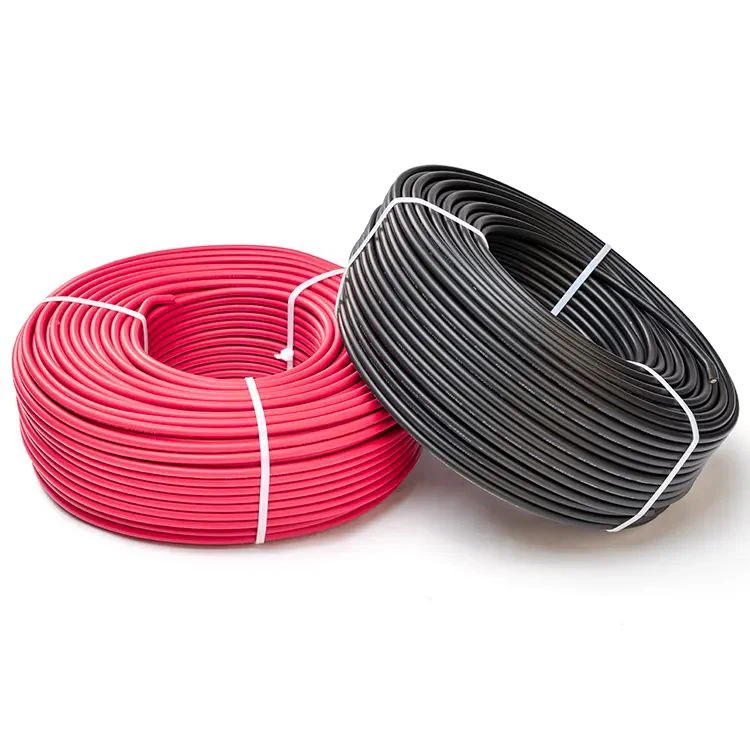

Introduction to related extension cords and cables
Solar extension cables offer a variety of benefits. Designed for outdoor use, it is UV and weather resistant, ensuring durability in a variety of conditions. These cables are available in different lengths allowing for flexible installation. Additionally, they often come with connectors for easy plug-and-play setup, reducing installation time and cost. Solar extension cables efficiently transmit DC power over long distances, minimizing power losses and ensuring optimal energy generation from solar panels. The insulation and protection features make it a safe and long-lasting solar installation, increasing the overall efficiency and performance of your solar system.
Solar photovoltaic cables offer several advantages. Designed for photovoltaic systems with strong insulation and weather resistance, ensuring durability in outdoor environments. Engineered to efficiently transmit DC power over long distances, reducing energy loss and optimizing solar array performance. Their UV resistance and flame retardant properties increase safety and longevity. Solar PV cables often come with connectors, allowing for quick and safe installation, saving time and effort. Comply with industry standards to ensure compatibility with various solar modules.
How to install the MC4 connector on your solar extension cable
stripping line
crimping
Insert the core into MC4MaleFemale
Tighten MC4 MaleFemale
Tools needed
Cable cutter
Cable Stripper
Crimping Tool
Connector Spanner
Connecting Solar Components: Connector tools are used to connect solar panels with other components such as inverters, batteries, etc. for efficient transmission of solar power.
Provide electrical connections: Connector tools ensure the reliability of electrical connections, lower resistance, and reduce energy loss, thereby improving the performance of solar systems.
Waterproof and dustproof: Solar connector tools are usually designed to be waterproof and dustproof to adapt to outdoor installation environments and ensure the long-term reliability of the system.
Safe connections: They provide a safe connection, reducing the risk of fire and electric shock, as they are usually fire-resistant.
QUICK INSTALLATION: Connector tools make solar system installation faster and more efficient, reducing labor and time costs.
Standardization: They often conform to international standards, ensuring compatibility and simplifying the design and maintenance of solar systems.

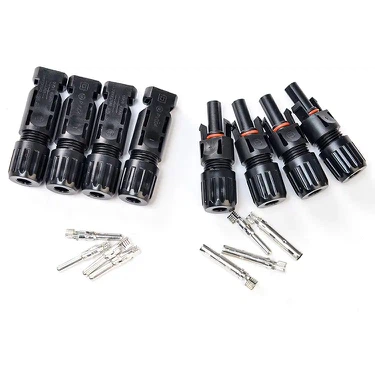

MC4 connectors
MC4 connectors
Metal connector
MC4 connectors, also known as Multi-Contact connectors, are a type of electrical connector commonly used in photovoltaic (solar panel) systems. They are designed to connect solar panels to other components of a solar installation, such as inverters, charge controllers, and other panels. MC4 connectors are known for their weather-resistant and waterproof properties, making them suitable for outdoor use. These connectors come in male and female pairs and are designed to create secure and reliable connections for the transmission of direct current (DC) power generated by solar panels.
Other related accessories products
Fuse Connectors Slocable
Solar positionable fuse connectors are electrical connectors for solar systems that provide safety, positioning and easy fuse replacement to enhance system reliability.
Connector Screw Type Male Plug
Connector screw type male plug is a component used in solar systems that has a male screw type connection to achieve a safe and reliable electrical connection during installation.
Connector Screw Type Female Plug
Solar Connector Screw Type Female Plug, with female screw type connection, securely connects with other solar modules, ensuring efficient electrical connection in solar panel installation.
Solar xlpe cable stripping tool
The Solar XLPE Cable Stripping Tool is designed for safely and efficiently stripping XLPE insulated cables in solar power systems, aiding in installation and maintenance.
Solar Panel Connector
A Solar Panel Connector is an electrical component used in solar installations to connect solar panels and other system components, ensuring efficient power transmission.
Solar Branch Connectors
Solar Branch Connectors are electrical components used in photovoltaic systems to split or combine power from multiple solar panels, aiding in system efficiency.
Applications
agriculture
Business
Charging equipment
communication device
Emergency backup power
industry
Irrigation system
military
ranch power
Residential
scientific research
transportation
Our Team
After-sales team
business team
design team
Operations team
Our Business Partner
Certification
TV EN50618
TV PV1-F
CE
SGS
SAA
ISO9001
Factory overview
Cargo Transportation
