Pv Extension Cables

Pv Extension Cables

Hongzhou's MC4 solar extension cables are ideal for connecting photovoltaic panels to microinverters because, for example, when using multiple panels in a photovoltaic balcony power plant (photovoltaic/solar system), the existing connecting cables are often not enough long. The certified and tested cables have good electrical conductivity, UV and weather resistance and ensure good fire protection due to the use of flame retardant materials.

100% tinned copper minimizes power loss in solar panel systems.
It has good flame retardancy, weather resistance, UV resistance and temperature resistance.
xlpe/xlpo low smoke halogen-free insulation materials have excellent wear and stress resistance.
TUV 2PfG 1169/08.2007 and EN50618:2014.
25 years service life

Extend the connection line between photovoltaic modules and solar panels.
Several extension cables of different lengths (5m or 10m) can be combined. Due to high line losses, the maximum length should not significantly exceed 20m.

Plug and play, ready to use right out of the box, no special tools required



Hongzhou standard PV extension cables easily connect panels to combiner boxes, inverters and charge controllers. Designed for use with solar panels and solar off-grid kits. These extension cables are designed for outdoor use and are UV and moisture resistant. The 50-foot length provides greater range and easier use.

Waterproof and weatherproof
10 AWG stranded copper wire with standard PV connector
50 feet of cable with standard PV male connector on one end and female connector on the other
Double Insulated Black #10 AWG PV Wire
UV and moisture resistant
The cable can be cut in half to create two cables with a standard photovoltaic connector on one end and bare wire on the other to allow for a variety of alternate connectors



 product-1000-1000



How to install the MC4 connector on your solar extension cable



stripping line

stripping line

crimping

crimping

Insert the core into MC4MaleFemale

Insert the core into MC4MaleFemale

Tighten MC4 MaleFemale

Tighten MC4 MaleFemale




Tools needed

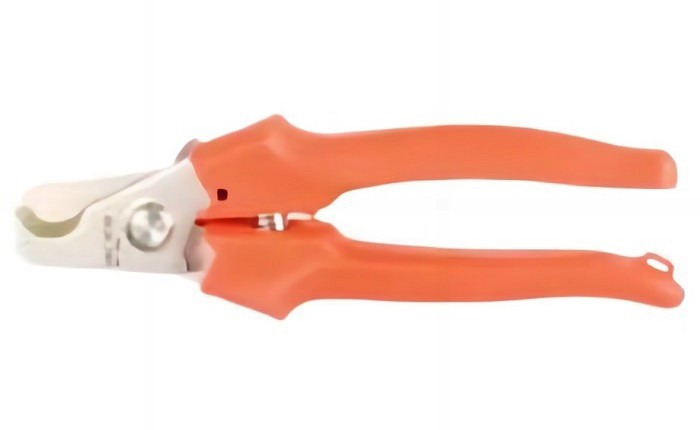

Cable cutter

Cable cutter

Cable Stripper

Cable Stripper

Crimping Tool

Crimping Tool

Connector Spanner

Connector Spanner



MC4 connectors



8 2

MC4 connectors

8 2 -

Metal connector
