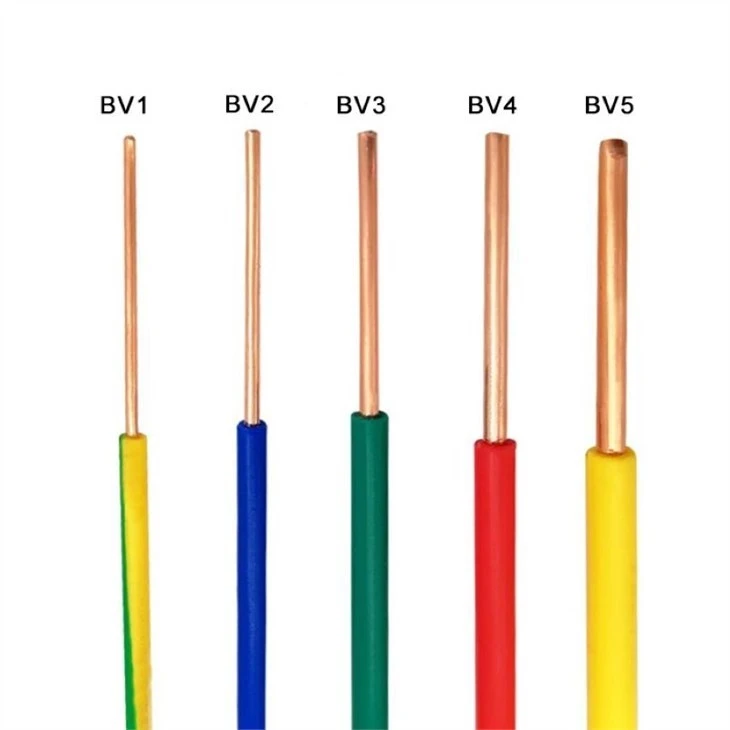

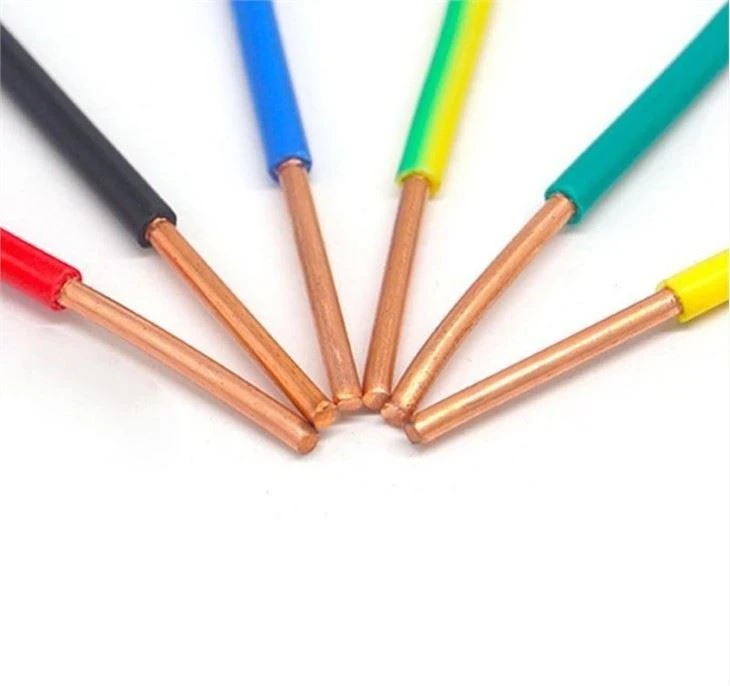

1.5mm Single Core Cable
Type: Insulated
Conductor Type: Stranded
Application: Overhead, Heating, Underground, Construction
Conductor Material: Copper
Sheath Material: PVC
Insulation Material: PVC
Description
Model | HZ-11A | Brand | OEM |
Product name | 1.5mm single core cable | Type | Insulated |
Application | housing and buliding | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Rated Voltage | 300/500V 450/750V |
Insulation Material | PVC Insulation Cable | Package | 100 meters of one roll |
Color | Black Blue Green Red Yellow White | certificated | ISO9001 CCC CE |
Application and Features
1.5mm single core cable is used to fix protection devices: i.e. lamps or control devices with voltage ≤ 1000V AC or ≤ 750V DC (from offices, homes or commercial buildings...). Install in the open air, in conduit, in cable tray and in cable duct. Due to the sliding characteristics of insulation, the fabrication of wires is convenient for treatment when pulled in.
The long-term working temperature of 1mm single core cable conductor shall not exceed 70 ℃- The long-term working temperature of 90 ℃ wire and cable conductor shall not exceed 90 ℃; The cable laying temperature shall not be lower than 0 ℃.
Product
 |  |
 |  |
Technical Data
Nominal section | No./dia. of core | Average dia.(mm) | Reference weight | Conductor resistance at 20℃ | |
(mm2) | (mm) | min | max | (kg/km) | (Ω/km) |
0.5 | 1/0.8 | 0.9 | 2.3 | 8.8 | 36 |
0.75(A) | 1/0.97 | 2.1 | 2.5 | 11.1 | 24.5 |
0.75(B) | 7/0.37 | 2.2 | 2.7 | 12 | 24.5 |
1.0(A) | 1/1.13 | 2.2 | 2.7 | 13.9 | 18.1 |
1.0(B) | 7/0.43 | 2.3 | 2.9 | 15 | 18.1 |
Our Company
Packaging
FAQ
1. About customized services
Yes, it can be customized, based on the number of special products. There is no problem in providing product model, logo and packaging.
2. How about the quality and price of the product?
We will provide you with competitive price and appropriate quality to meet your needs.
3. Can you send samples / free / free?
Samples are free, but you need to pay for FedEx or DHL. You can use your account.
4. Do you accept small batch orders?
Certainly.
5. What is your packing?
Inside are cartons and outside are export wooden cases.
Hot Tags: 1.5mm Single Core Cable, China, suppliers, manufacturers, factory, wholesale, cheap, 18 awg solid wire 600v, 14 Gauge Single Strand Wire, 12 gauge house wire, 16 gauge wire, single core copper cable, 18 awg single strand wire
