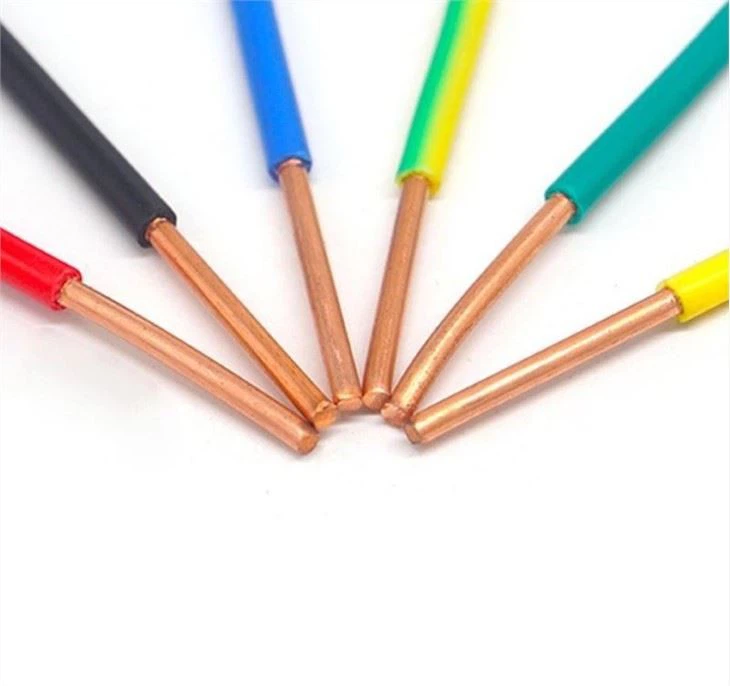

6mm Single Core Cable
16 gauge solid wire is the preferred wire for outdoor or rugged applications that may expose wires to corrosive elements, harsh weather conditions or frequent movement.
Description
Model | HZ-07A | Brand | OEM |
Product name | 6mm single core cable | Type | Insulated |
Application | Underground | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Rated Voltage | 450/750V |
Jacket | PVC | Package | Carton |
Core | 1 core | certificated | UL/CCC/VDE/CCC/SGS/ISO9001 |
Application and Features
Main features of 6mm single core cable
Rated voltage 450 / 750V and AC voltage below 450 / 750V.
Long term allowable temperature of cable: the temperature shall not exceed 105 ℃, and the allowable temperature of other models shall not exceed 70 ℃.
6mm single core cable is suitable for plant, household, electrical application, insurance and telecommunication equipment.
Product
Technical Data
| tage level (V) | Nominal section (mm²) | Number of conductors | Toplimit of overalldiameter(mm) | Maximum DC resistance (20℃) (Ω/km) | Minium insulation resistance (20℃) (MΩ·km) | Recommended value of carring capacity (A) | Reference weight (kg/km) |
| 300/500 | 0.5 | 1 | 2.3 | 36 | 0.015 | 13 | 8.3 |
| 0.75 | 7 | 2.6 | 24.5 | 0.012 | 17 | 10.9 | |
| 0.75 | 1 | 2.7 | 24.5 | 0.014 | 17 | 11.8 | |
| 1 | 7 | 2.8 | 18.1 | 0.011 | 20 | 13.7 | |
| 1 | 1 | 3 | 18.1 | 0.013 | 20 | 14.8 | |
| 450/750 | 1.5 | 1 | 3.2 | 12.1 | 0.011 | 25 | 20.0 |
| 1.5 | 7 | 3.3 | 12.1 | 0.01 | 25 | 21.3 | |
| 2.5 | 1 | 3.9 | 7.41 | 0.01 | 34 | 31.5 | |
| 2.5 | 7 | 4 | 7.41 | 0.009 | 34 | 34.4 | |
| 4 | 1 | 4.4 | 4.61 | 0.0085 | 44 | 46.8 | |
| 4 | 7 | 4.6 | 4.61 | 0.0077 | 44 | 48.1 | |
| 6 | 1 | 5 | 3.08 | 0.007 | 58 | 65.1 | |
| 6 | 7 | 5.2 | 3.08 | 0.0065 | 58 | 68.8 | |
| 10 | 7 | 6.7 | 1.83 | 0.0065 | 79 | 111 | |
| 16 | 7 | 7.8 | 1.15 | 0.005 | 111 | 166 | |
| 25 | 7 | 9.7 | 0.727 | 0.005 | 146 | 263 | |
| 35 | 7 | 10.9 | 0.524 | 0.004 | 180 | 356 | |
| 50 | 19 | 12.8 | 0.387 | 0.0045 | 228 | 487 | |
| 70 | 19 | 14.6 | 0.268 | 0.0035 | 281 | 679 | |
| 95 | 19 | 17.1 | 0.193 | 0.0035 | 344 | 932 | |
| 120 | 37 | 18.8 | 0.153 | 0.0032 | 397 | 1163 | |
| 150 | 37 | 20.9 | 0.124 | 0.0032 | 456 | 1424 | |
| 185 | 37 | 23.3 | 0.0991 | 0.0032 | 519 | 1789 | |
| 240 | 61 | 26.6 | 0.0754 | 0.0032 | 592 | 2335 | |
| 300 | 61 | 29.6 | 0.0601 | 0.003 | 685 | 2924 | |
| 400 | 61 | 33.2 | 0.047 | 0.0028 | 799 | 3750 |
Our Company
Packaging
FAQ
1. Are you a manufacturer or a trading company?
We are a professional manufacturer. We can control your order from beginning to end.
2. How can I get samples to check your quality?
After the price is confirmed, you can ask samples to check our quality. Samples are free of charge, but freight is required.
3. Can I visit your factory before placing an order?
Yes, welcome to our factory to check the quality.
4. Do you accept small batch orders?
Certainly.
5. What are your terms of payment?
T / T (30% - 50% as counter, the rest will be paid before delivery), L / C at line
