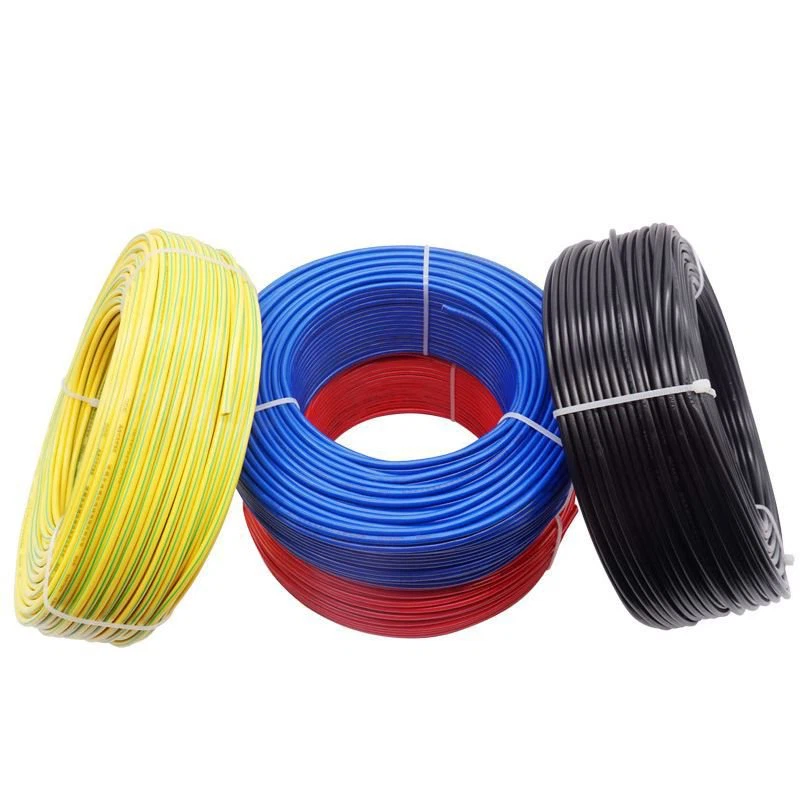

16mm Single Core Cable
Type: Insulated
Conductor Type: Stranded
Application: Overhead, Heating, Underground
Conductor Material: Copper and Aluminum
Sheath Material: PVC
Insulation Material: PVC
Description
Model | HZ-10A | Brand | OEM |
Product name | 16mm single core cable | Type | Insulated |
Application | Household | Place of Origin | Zhejiang,China |
Conductor Material | Copper | Rated Voltage | 300/500V 450/750V |
Insulation Material | PVC | Package | 100m/roll |
Color | Red Yellow Blue Black Green or customized | certificated | CCC/ BS/ IEC |
Application and Features
16mm single core cable is a widely used wire type for industrial, commercial and residential construction and applications. These wire types offer many advantages over other wire types.
16mm single core cable can also be used for wiring of machine tools, control circuits or some electrical appliances.
Wire size and ampere rating
Current carrying capacity is the maximum current that a conductor can continuously carry under the service condition of not exceeding its rated temperature. Current is measured in amperes or "amperes". You must calculate the current (load) according to the circuit
Wires of the correct size are required to prevent overheating.
Product
 |  |
 |  |
Technical Data
Type | Cross Section(mm2) | Conductor Size(No. of Cores/Diameter) | Rated Voltage | Nominal Insulation Thickness(mm) | Reference Weight(kg/km) | Application |
Solid Type | 0.5 | 1/0.80 | 300/500V 450/750V | 0.6 | 8.0 | Solid, Hard,Suitable for fixed installation |
0.75 | 1/0.97 | 0.6 | 11.4 | |||
1 | 1/1.13 | 0.6 | 15.2 | |||
1.5 | 1/1.38 | 0.7 | 21 | |||
2.5 | 1/1.78 | 0.7 | 32 | |||
4 | 1/2.25 | 0.8 | 47 | |||
6 | 1/2.76 | 0.8 | 67 | |||
Stranded Type | 1.5 | 7/0.52 | 0.7 | 22 | Stranded, Flexible house wiring, Suitable for indoor applicant. | |
2.5 | 7/0.68 | 0.7 | 35 | |||
2.5 | 19/0.40 | 0.8 | 34 | |||
4 | 7/0.85 | 0.8 | 50 | |||
4 | 19/0.52 | 0.8 | 51 | |||
6 | 7/1.04 | 0.8 | 71 | |||
6 | 19/0.64 | 0.8 | 72 | |||
10 | 7/1.35 | 1.0 | 118 | |||
10 | 49/0.52 | 1.0 | 127 | |||
16 | 7/1.70 | 1.0 | 177 | |||
16 | 49/0.64 | 1.0 | 184 | |||
Flexible Type | 1.5 | 30/0.25 | 0.7 | 22 | Ultra Flexible, Soft Conductor, Suitable for small power equipment instrument. | |
2.5 | 49/0.25 | 0.8 | 34 | |||
4 | 56/0.30 | 0.8 | 49 | |||
6 | 84/0.30 | 0.8 | 70 | |||
10 | 77/0.40 | 1.0 | 117 | |||
16 | 119/0.40 | 1.0 | 168 | |||
25 | 189/0.40 | 1.2 | 265 | |||
... |
Our Company
Packaging
FAQ
1. Are you a manufacturer or a trading company?
We are a professional manufacturer. We can control your order from beginning to end.
2. How can I get samples to test your quality?
If we have stock, some models will be free of charge, depending on the style, color and logo printing you need.
3. What is your minimum order quantity?
Generally 2 kilometers. However, the cable is heavy. You'd better order an appropriate quantity to avoid high freight. Shipping is the best choice.
4. What are your strengths?
(1) Competitive price
(2) One stop purchasing (3) quick response to all inquiries and professional suggestions (4) 10-year quality assurance of all our products.
5. Does your company accept OEM & ODM production?
Yes, you can print your company name, and we can even customize the quality card to promote your company.
