High Quality UTP Cat5e LAN Cable

The Ethernet cables used for connection in most office and home environments rely on twisted pairs throughout the cable - Cat 5, Cat 6, and cat 7 use this format.

Send Inquiry

We offer fantastic strength in high quality and enhancement, merchandising, income and marketing and procedure for 1 5 mm Single Core Cable, 16mm 2 flexible cable, 0 5 mm single core cable. Through long-term tracking and research on new technologies and new customer needs in the industry, we have developed technology research and development directions that are close to the needs of customers. Success is our never-give-up pursuit, in order to achieve the ideal, we will struggle endlessly and unswervingly. We have a complete quality inspection system and quality control system. Professional technicians and advanced inspection instruments provide a good foundation for the company to implement strict quality inspection and quality control.

Description

Model	HZ-02F	Brand	OEM
product	Cat5e Outdoor Cable	Type	Cat 5e, Cat5e
Application	Networking	Inner Conductor	CCA
Wire Core Material	Bare Copper Wire	Place of Origin	Zhejiang,China(Mainland)
Jacket	PVC LSZH LSOH PE HDPE	Transport Package	Carton,Wooden Drum
Shield	FTP/SFTP AL FOIL+AL braiding	Certificated	CE ,VDE,ROHS,SGS

Application and Features

Ethernet cables used for connections in office and home environments rely on twisted pairs throughout the cable - Cat 5, Cat 6, and Cat 7 use this format. These wires are twisted together to balance the current. In one wire, the current moves in one direction, while in the other wire, the current flows to the other wire, so the whole magnetic field around the twisted pair can be offset.

In this way, data can be transmitted to a considerable length without taking improper precautions.

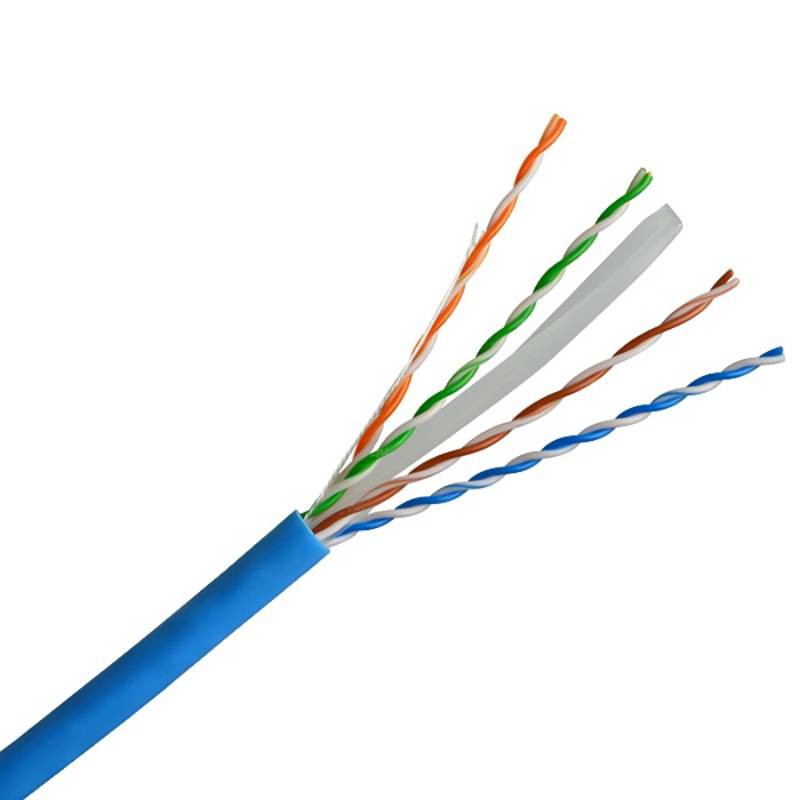

Product

564122(1)

Technical Data

Frequency (MHz)	Attenuation (dB/100m)	Return loss (dB/100m)	Pair to Pair
			NEXT (dB/100m)	ELFEXT (dB/100m)
0.77 1 4 8 10 16 20 25 31.25 62.5 100 155 200 300 350	1.80 2.00 4.00 5.80 6.50 8.20 9.20 10.40 11.70 17.00 22.00 28.10 32.40 41.00 44.90	NA 20.00 23.00 24.50 25.00 25.00 25.00 24.30 23.60 21.50 20.10 18.80 18.00 16.80 16.30	70.00 68.30 59.30 54.80 53.30 50.30 48.80 47.30 45.90 41.40 38.30 35.50 33.80 32.30 30.20	69.00 66.80 54.70 48.70 46.80 42.90 40.70 38.80 36.90 30.80 26.80 22.90 20.70 17.20 15.90

Our Company

product-975-574

Packaging

FAQ

1. Are you a real manufacturer?

A: Yes. We are a real manufacturer, specializing in the production of coaxial cable, LAN cable and optical cable.

2. Are the quality of these products guaranteed?

A: Most cables are certified. In addition, we have strict QC, and all products have been 100% tested before delivery.

3. What is your regular packing?

A: 100M / plastic bucket or wooden bucket, 305m / wooden bucket or color box. However, we can produce according to your needs.

4. What kind of products can your company provide?

A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable, etc.

5. What is the delivery date for mass production?

A: To be honest, it depends on the number of orders and the season you place your order. Generally speaking, we recommend that you. Start inquiry two to three months before the date you want to obtain products in your country/region.

We shoulder the responsibility to thousands of consumers and give full play to the brand advantage in the High Quality UTP Cat5e LAN Cable industry. We will firmly grasp the corporate development strategy and adhere to the business philosophy of integrity, efficiency, professionalism and steadiness. Our superb reputation of reliability and business success continue through the development of personal relationship with our buyers on a long-term mutual beneficial basis.
