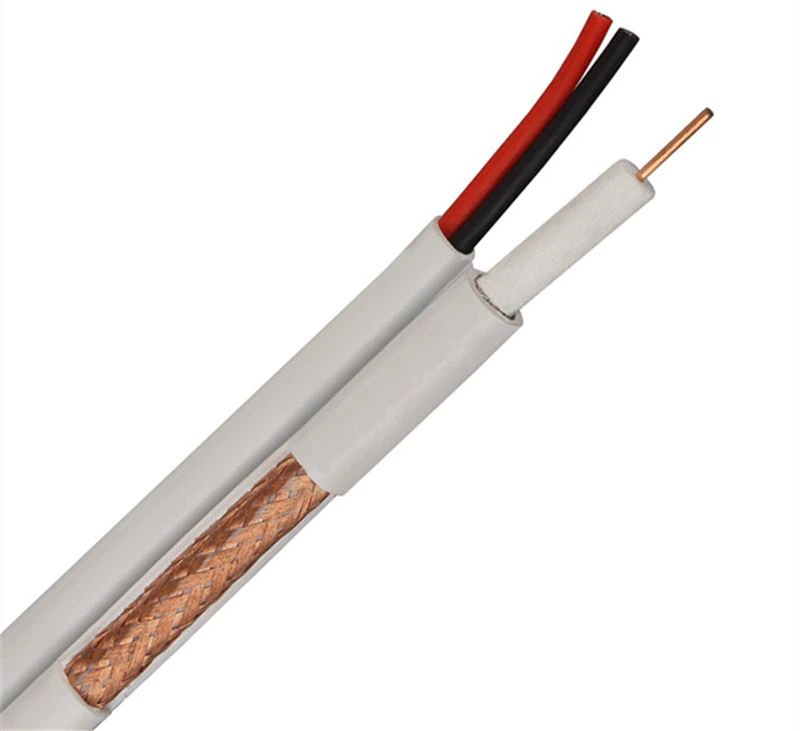

CCTV Cable 75ohm Rg Coaxial Cable Series RG6/Rg11/Rg59 RG6 Cable

We use reliable materials to manufacture RG6 CCS coaxial cable.Manufacturing high-quality cables begins with the use of high-quality materials and components.

Send Inquiry

We insist on independent innovation and standardized control, and strive to improve the quality of our 1.5 single core cable, PVC Insulated Copper Wire, solid stranded wire and build a good reputation. We constantly improve the incentive mechanism for research and development and technological innovation, because a good mechanism not only fully mobilizes the innovation enthusiasm of existing talents, but also helps to attract more talents to join us. With diversified production and comprehensive and thoughtful brand services, we have gathered high-level product design, research and development, and technological innovation strength. We are willing to provide our customers with high-quality, efficient and qualified products with sophisticated design, stable quality, fast delivery and considerate service, so as to achieve a win-win strategy for customers and us.

Description

Model	HZ-01E	Brand	OEM
Product Name	Rg6+2C Coaxial Cable	Type	Solid/Stranded
Application	Local Communication Cable, Coaxial Cable	Conductor Material	CCS/Cu
Cover Material	PVC	Place of Origin	Zhejiang,China(Mainland)
Jacket	PVC LSZH LSOH PE HDPE	Transport Package	Carton
Power Wire	CCA/Cu	Certificated	CE ,VDE,ROHS,SGS

Application and Features

RG6 CCS coaxial cable and RG59 coaxial cable are different in use. The RG6 cable has heavier specifications, adjusted insulation and shielding, and is suitable for high bandwidth and high frequency applications (such as Internet, cable TV and satellite TV signals). If you are not sure which cable to use, RG6 cable is your best choice.

The RG59 cable is thin and is recommended for low bandwidth and low frequency applications such as analog video and closed-circuit television installations.

Product

2356

888

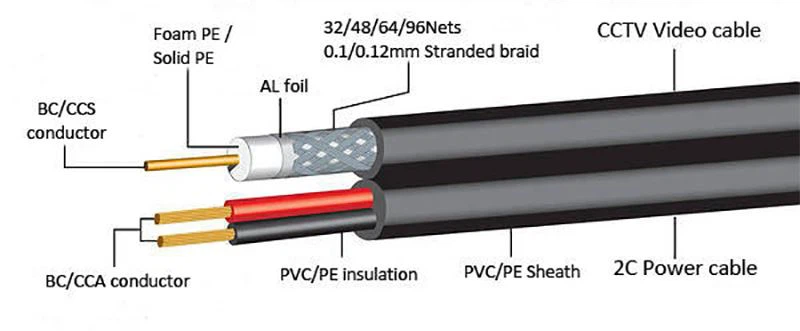

Technical Data

Structure	Material	RG6 DUAL	RG6TRI	RG6 QUAD
Conductor	BC/CCS	1.02mm(18AWG 0.04")
Dielectric	FPE	4.57mm(0.18")
1st Shield	Al Foil	100%, Overlap>2mm
2nd Shield	BC or Al Braiding	40%-95%		53%
3rd Shield	Al Foil	-	100%, Overlap>2mm
4th Shield	BC or Al Braiding	-	-	40%
Jacket PVC/PE	Outer Diameter	6.91mm(0.272'')	7.02mm(0.276'')	7.62mm(0.30'')
Jacket PVC/PE	Nominal Thickness	0.76mm(0.032'')	0.76mm(0.030'')	0.86mm(0.034'')
Power wire :
Material :		CCA /COPPER
Size :		7*0.37mm 0.75mm2 0.5mm2

Our Company

Packaging

FAQ

Q1.Can you accept small orders?

A: Yes, we support customers' new projects. We know that business always comes from small orders.

Q2.Are the quality of these products guaranteed?

A: Most cables are certified. In addition, we have strict QC, and all products have been 100% tested before delivery.

Q3.Can you accept our customization or design?

A: Yes, all communication cables are customized in our own factory. We can design them for you according to your requirements.

Q4.What kind of products can your company provide?

A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable, etc.

Q5.What's your minimum order?

A: The minimum quantity of long meter cable is 50km, or we can negotiate

Our company has a number of skilled scientific research, production personnel and has a strong sales team. CCTV Cable 75ohm Rg Coaxial Cable Series RG6/Rg11/Rg59 RG6 Cable have won high market popularity and share and are deeply loved by consumers. We create a platform for development and display our talent to the fullest. Our company works closely with scientific research institutions, conducts joint research, follows up the international market, continuously improves process technology, and strives to develop new products that meet the needs of users.
