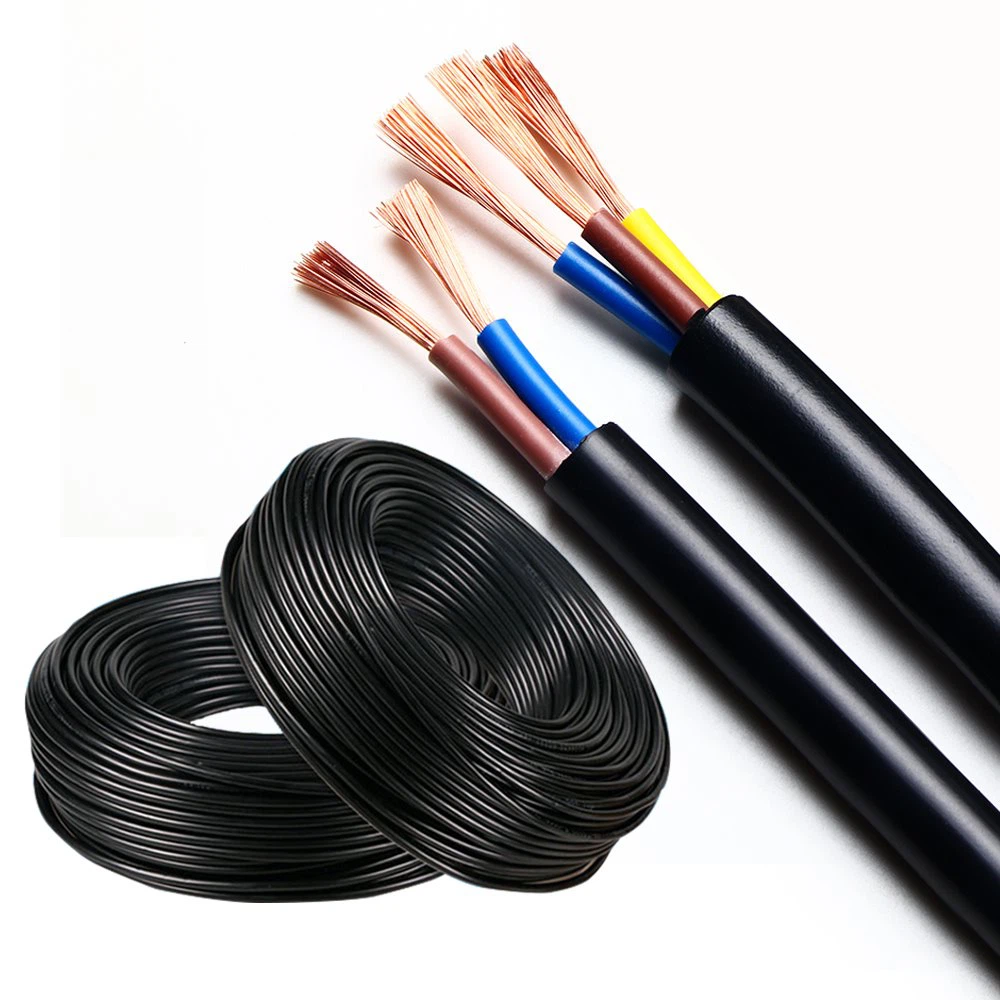

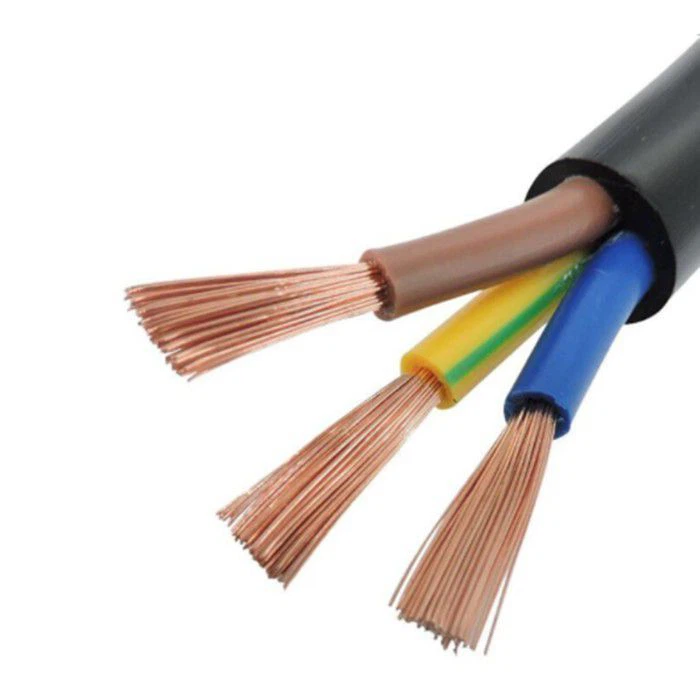

2.5mm 6241y 6242y 6243y Flat PVC Electrical Cable Twin and Earth Cable House Wiring Cable

Non metallic sheathed wire is solid core or stranded tinned copper wire with low resistance and good conductivity.

Compared with similar products in the market, our 1.5 mm single core double insulated cable, Red and Black Speaker Wire, 18 Gauge Single Strand Wire is of better quality and lower price. Our team is experienced in the industry, and we have enhanced the cohesiveness of the team through equity incentives. Looking to the future, we will continue to innovate and forge ahead, and reform is our eternal responsibility.

Description

Model	HZ-06C	Brand	OEM
Product name	Non Metallic Sheathed Wire	Type	Insulated
Application	Overhead	Place of Origin	Zhejiang,China(Mainland)
Conductor Material	Copper	Voltage Rating	450/750V
Insulation Material	Rubber	Package	Seaworthy packing
Colour	Black	certificated	CE ,VDE

Application and Features

Non metallic sheathed wire is widely used. Nm-b cable is usually used for residential devices, switches and loads with a rated temperature of at least 90 º C. The current carrying capacity limit of NM-B type shall comply with the conductor temperature rating of 60 º C specified in the national electrical code. The rated voltage of NM-B is 600 V, which is suitable for exposed and concealed work in normal dry places. Type NM-B can be installed or fixed in voids and joints and in masonry or tile walls that will not be exposed to excessive moisture or moisture and will not be affected by excessive moisture.

Non metallic sheathed wire is solid core or stranded tinned copper wire with low resistance and good conductivity. Silicone rubber is adopted, which has good insulation effect and can withstand high temperature of 200 ℃.

Product

Technical Data

The conductor size		Insulation nominal thicknessmm	Average outer diameter ceiling mm	About a net weight per kilometer kg
Nominal area mm2	Line number and line diameter mm	Insulation nominal thicknessmm	Average outer diameter ceiling mm	About a net weight per kilometer kg
1.0	1/1.13	0.6	2.8	14
1.5	1/1.38	0.7	3.3	20
1.5	7/0.50	0.7	3.4	20
2.5	1/1.78	0.8	3.9	33
2.5	7/0.67	0.8	4.2	34
4	1/2.25	0.8	4.4	51
4	7/0.85	0.8	4.8	51
6	1/2.76	0.8	4.9	67
6	7/1.04	0.8	5.4	71
10	1/3.57	1.0	6.4	110
10	7/1.35	1.0	6.8	120
16	1/4.50	1.0	7.3	170
16	7/1.70	1.0	8.0	180
25	7/2.14	1.2	9.8	285
35	19/1.53	1.2	11.0	380
50	19/1.78	1.4	13.0	510
70	19/2.14	1.4	15.0	715
95	19/2.52	1.6	17.0	990
120	37/2.03	1.6	19.0	1230
150	37/2.25	1.8	21.0	1510
185	37/2.52	2.0	23.5	1900
240	61/2.25	2.2	26.5	2490
300	61/2.52	2.4	29.5	3050
400	61/2.85	2.6	33.5	3900
500	61/3.20	2.8	37.0	4880
