Thhn Awg

Product Description

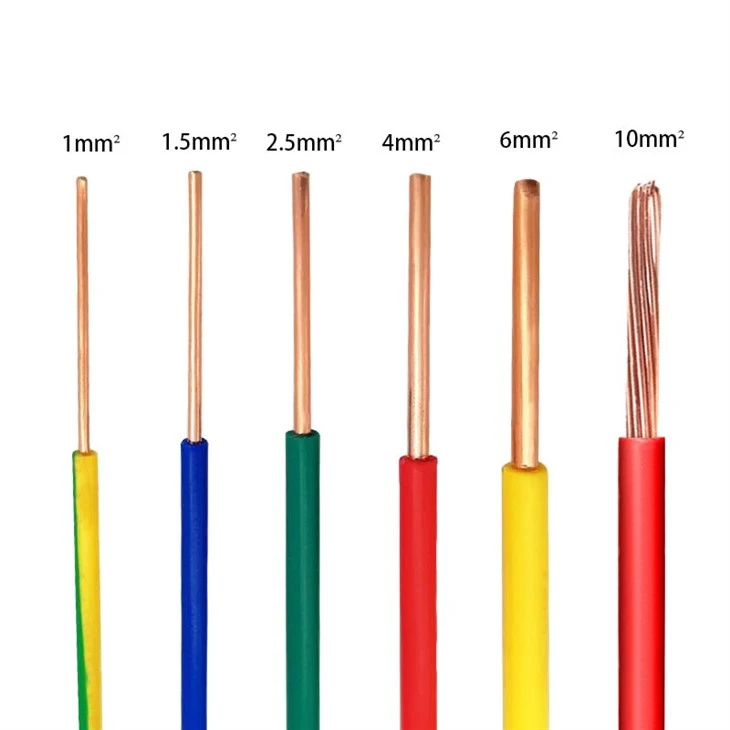

THHN wire, also known as Thermoplastic High Heat-resistant Nylon wire, is a versatile electrical wiring solution that caters to various applications. Its designation "AWG" refers to the American Wire Gauge sizing system, which measures the wire's diameter. With a wide range of AWG options available, thhn awg offers flexibility in meeting specific electrical requirements.Featuring a solid or stranded copper conductor, THHN wire ensures optimal conductivity and efficient power transmission. The copper conductor is known for its excellent electrical properties, making it suitable for diverse electrical installations. The wire is coated with a durable thermoplastic insulation, offering resistance to heat, moisture, chemicals, and abrasion.

The thhn awg determines its diameter and current-carrying capacity. Smaller AWG sizes indicate thicker wires capable of carrying higher currents. This versatility allows THHN wire to be employed in residential, commercial, and industrial settings. It is commonly used for wiring circuits, outlets, switches, lighting fixtures, and electrical panels.THHN wire's flexibility simplifies installation, enabling easy routing through conduit systems or direct installation in walls and ceilings. The wire's insulation is color-coded according to industry standards, facilitating identification and ensuring accurate connections.

---

Our advantage

High flame retardant performance

The insulation layer has been enhanced with a high-performance flame retardant, enabling it to withstand high temperature pressure tests and maintain its integrity.

Strong filexibility, not easy to break



Flexible oxygen-free copper core has longer lifespan, high heat resistance, and reduced risk of breakage.

Oxygen free copper

The copper core adopts 99.99% oxygenfree copper with good conductivity andstrong current load capacity.

Uniform thickness, antibreakdown

Corrosion-resistant PVC insulation layer with uniform thickness is applied to the conductor for electrical safety.



Product Size

Item Spec. AWG	Nominal Cross Section	NO./Diameter Of Conductor mm	Insulation Thicknese mm	Jacket Thicknese mm	Max.Outer Diameter mm	Ref.Weight kg/km
20	0.519	1/0.813	0.4	0.12	2.0	7.07
18	0.823	1/1.02	0.4	0.12	2.2	10.94
16	1.31	1/1.29	0.4	0.12	2.5	16.48
14	2.08	1/1.63	0.4	0.12	2.8	23.17
16	1.31	7x0.49	0.4	0.12	2.8	17.95
14	2.08	7x0.62/19x0.36	0.4	0.12	3.2	23.8



With its compliance to safety standards and building codes, thhn awg guarantees reliable performance and electrical safety. It provides a secure electrical infrastructure, minimizing the risk of electrical faults and ensuring the smooth operation of various systems.

In summary, THHN wire in different AWG sizes is a versatile and reliable electrical wiring solution. Its solid or stranded copper conductor, durable thermoplastic insulation, and compliance with safety standards make it suitable for a wide range of applications. Whether it's residential, commercial, or industrial use, THHN wire offers efficient power transmission and secure electrical connections.

---

OUR PRODUCTS



Multi-core Flexible Cable

Single Core Wire

Twin Flat Cable

Twin With Earth Cable

Welding Cable

Twin Flat Flexible Cable

0.6/kv pvc/xlpe Cable

NR Rubber Flexible Cable

FAQ

1.What is the maximum current rating for 10 gauge wire?
The maximum current rating for 10 gauge wire varies depending on factors such as the insulation type, installation method, and ambient temperature. However, for general purpose applications in a typical environment, 10 gauge wire can safely carry up to 30 amps of current. It is always recommended to consult the manufacturer's specifications or a certified electrician to determine the maximum current rating for a specific application.
