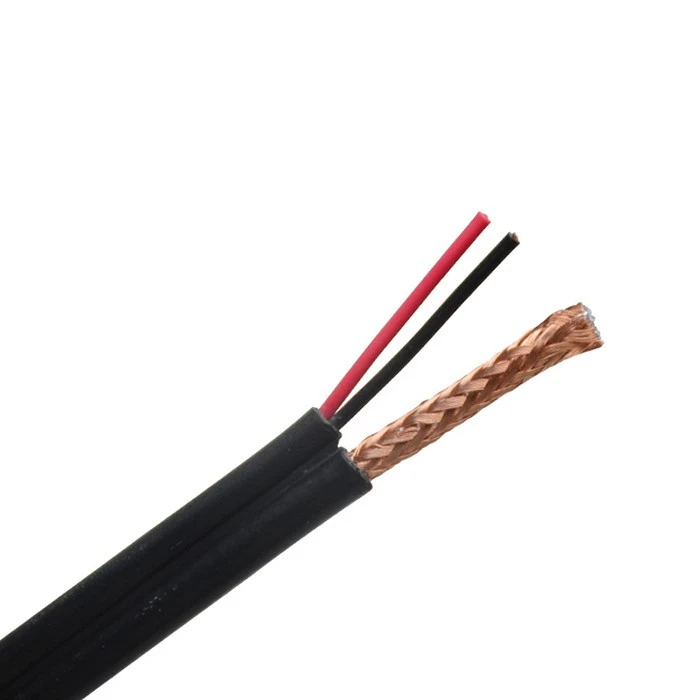

Rg6+2C Coaxial Cable
We use reliable materials to manufacture RG6 CCS coaxial cable.Manufacturing high-quality cables begins with the use of high-quality materials and components.
Description
| Model | HZ-01E | Brand | OEM |
| Product Name | Rg6+2C Coaxial Cable | Type | Solid/Stranded |
| Application | Local Communication Cable, Coaxial Cable | Conductor Material | CCS/Cu |
| Cover Material | PVC | Place of Origin | Zhejiang,China(Mainland) |
Jacket | PVC LSZH LSOH PE HDPE | Transport Package | Carton |
| Power Wire | CCA/Cu | Certificated | CE ,VDE,ROHS,SGS |
Application and Features
RG6 CCS coaxial cable and RG59 coaxial cable are different in use. The RG6 cable has heavier specifications, adjusted insulation and shielding, and is suitable for high bandwidth and high frequency applications (such as Internet, cable TV and satellite TV signals). If you are not sure which cable to use, RG6 cable is your best choice.
The RG59 cable is thin and is recommended for low bandwidth and low frequency applications such as analog video and closed-circuit television installations.
Product
Technical Data
Structure | Material | RG6 DUAL | RG6TRI | RG6 QUAD |
Conductor | BC/CCS | 1.02mm(18AWG 0.04") | ||
Dielectric | FPE | 4.57mm(0.18") | ||
1st Shield | Al Foil | 100%, Overlap>2mm | ||
2nd Shield | BC or Al Braiding | 40%-95% | 53% | |
3rd Shield | Al Foil | - | 100%, Overlap>2mm | |
4th Shield | BC or Al Braiding | - | - | 40% |
Jacket PVC/PE | Outer Diameter | 6.91mm(0.272'') | 7.02mm(0.276'') | 7.62mm(0.30'') |
Nominal Thickness | 0.76mm(0.032'') | 0.76mm(0.030'') | 0.86mm(0.034'') | |
Power wire : | ||||
Material : | CCA /COPPER | |||
Size : | 7*0.37mm 0.75mm2 0.5mm2 | |||
