Coaxial Cable Types
We use reliable materials to manufacture RG6 CCS coaxial cable.Manufacturing high-quality cables begins with the use of high-quality materials and components.
Description
Model | HZ-06E | Brand | OEM |
product | rg59 siamese cable 1000 ft | Type | coaxial cable |
Application | Local communication cable | Inner Conductor | BC/CCS/CCA/TC/CU/CCAG |
Wire Core Material | Bare Copper Wire | Place of Origin | Zhejiang,China(Mainland) |
Jacket | PVC | Transport Package | Carton,Wooden Drum |
Payment | T/T,L/C | Certificated | CE、ISO、RoHS、CPR |
Application and Features

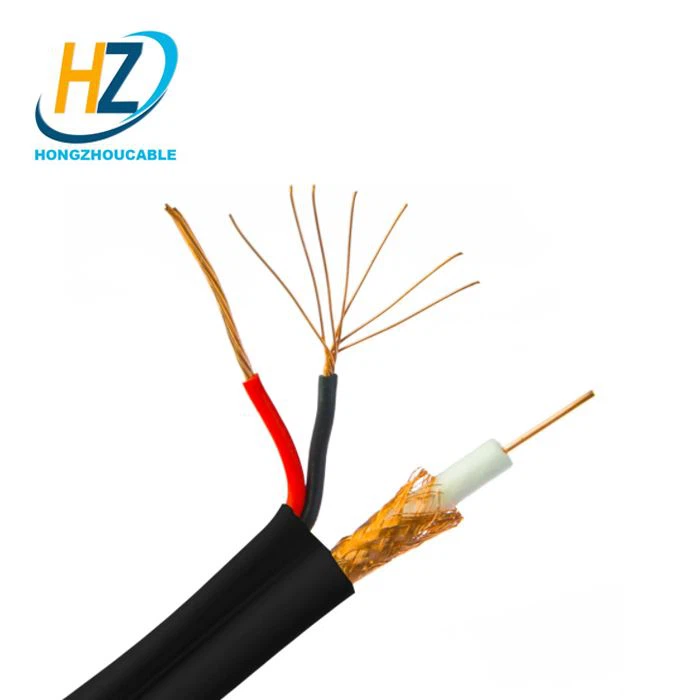

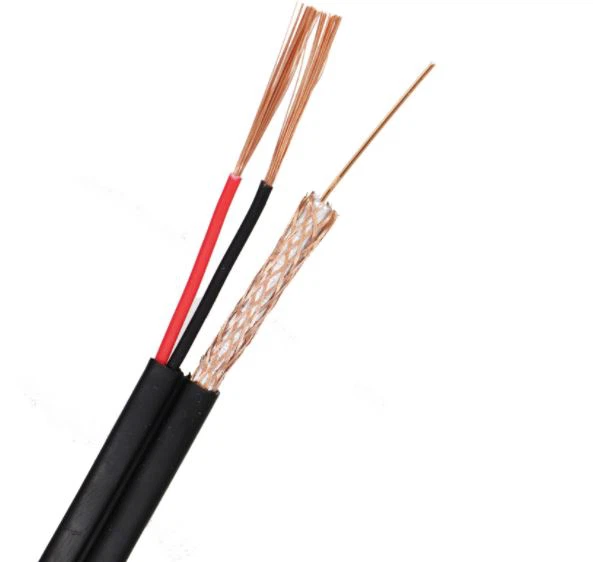

RG59 siamese cable 1000 ft is the most cost-effective and reliable way to connect CCTV video surveillance system. Our RG 59 cable has double shielding, including 90% braid, which provides you with excellent signal quality by protecting your signal from electromagnetic interference (EMI).
Product
Technical Data
Structure | Material | RG59 DUAL | RG59 TRI | RG59 QUAD |
Conductor | BC/CCS | 0.81mm | ||
Dielectric | FPE | 3.66mm | ||
1st Shield | Al Foil | 100%, Overlap>2mm | ||
2nd Shield | BC or Al Braiding | 30%-95% | 60% | |
3rd Shield | Al Foil | - | 100%, Overlap>2mm | |
4th Shield | BC or Al Braiding | - | - | 40% |
Jacket PVC/PE | Outer Diameter | 6.1mm | 6.926.32mm | 7.62mm |
Nominal Thickness | 0.76mm(0.030'') | 0.76mm(0.030'') | 0.86mm(0.034'') | |
Messenger | Steel | 1.30mm or 1.83mm | ||
Our Company
Packaging
FQA
1. Are you a factory or a trading company?
A: We are a factory with more than 10 years of manufacturing experience.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Packing and Delivery ?
305mtr( 1000ft) / pull box. 2 box/carton.
100m per roll with PE 500m per wooden drum.
Others packing Available
Usually delivery time will be 20Days .
4.What can you buy from us?
Network Cables ( Cat5e, Cat6, Cat6a, Cat7) (UTP/ FTP/STP/SFTP) Indoor and Outdoor
Communication Cables,Fiber Optic , Network Patch cord
Network Accessories ( Keystone Jack/ Patch panel / Connectors / Tester and Tools)
5.What is your payment term?
Normally Products will be TT (30% Deposit, 70% before shipment)
OEM/ODM Product will be TT (80% Deposit , 20% before shipment).
